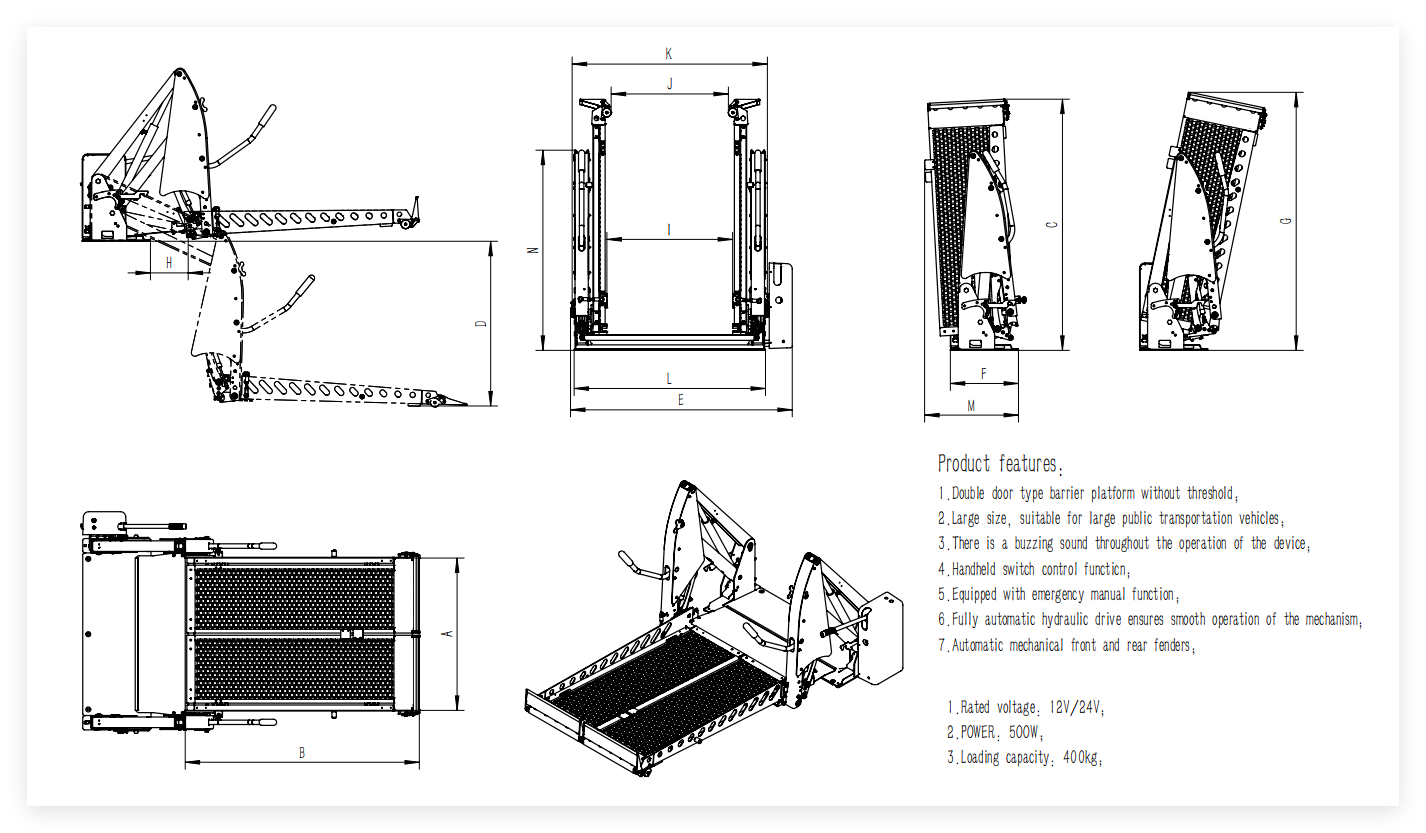

Cantilever Lifts L3B

The L3B series Cantilever Wheelchair lifts are mainly installed at rear door or side door of commercial vehicles, It can very conveniently assist the elderly or disabled who have difficulty moving to get on and off the vehicle.When the platforms are fully opened, there are no any obstacles in the middle aisle.

Inquire Now

Product Description

Patented products:This L3B series Cantilever Wheelchair lifts have multiple patents;
Fully automatic hydraulic drive:the movement of lifting, lowering and sliding back are fully automatic;
Sound Alarm: A warning sound is emitted throughout the operation to alert nearby personnel;
Accessible middle aisle :When the platforms are fully opened, there are no any obstacles in the middle aisle which passengers can safely and quickly pass throught；
Easy operation：It can be operated by the wired remote control or your cellphone;
Manual emergency function:It also can be operated manually for emergency.
Circuit Protection: The product’s circuit is protected from damage in cases of motor short circuit or reverse power connection;
Overload Protection: The lifting device cannot lift objects heavier than 400 kg from the ground;
Low Power Consumption: The current equivalent value during the sleep/static phase is < 0.2 mA, reducing battery consumption;
Durability: The lifting test operation count is ≥ 12,500 times.
