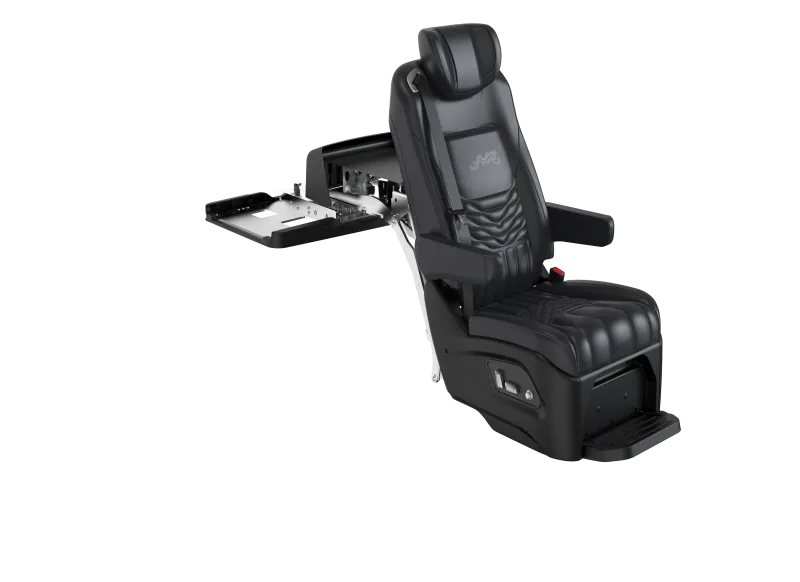

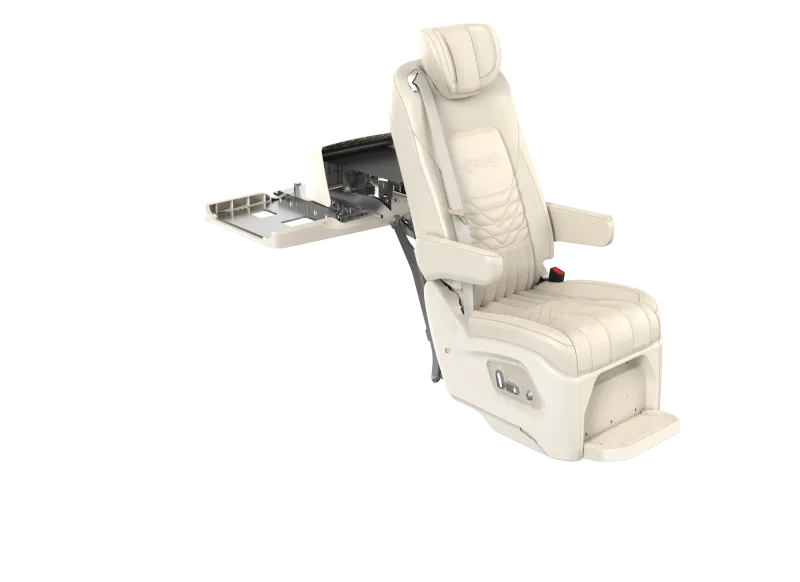

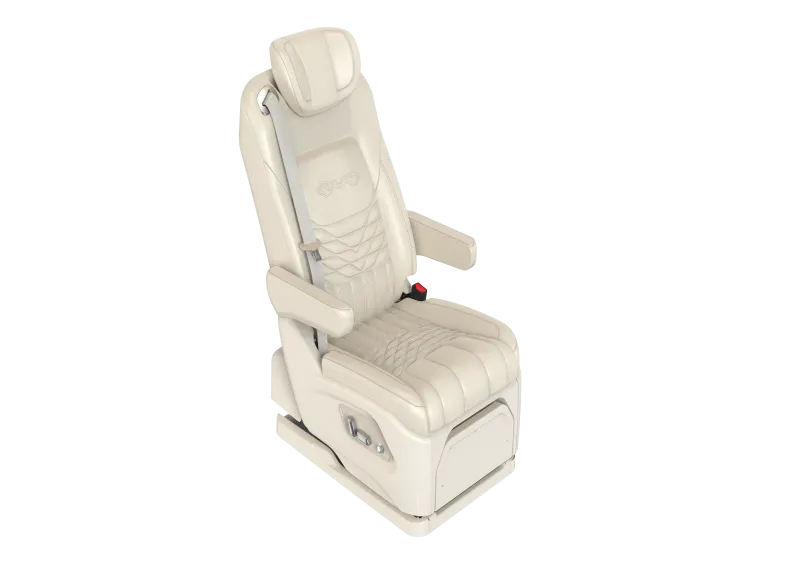

Lift Swivel Seats S5B

• Patented products:This S5B series Lift Swivel Seats have multiple patents

• Vehicle grade control system:The accessible seat control system adopts a vehicle grade design, which is more stable and reliable than the industrial grade control systems of existing market competitors. At the same time, the vehicle grade control system can meet the strict electromagnetic compatibility testing of on-board electronic products by the front-end host factory;

• Lightweight design:The accessible seat mechanism is about 10% lighter than its market competitors on average, and its structural strength meets the requirement of no damage or plastic deformation to any part under a maximum load of 300kg;

• Program function: The rotation path, forward and backward movement, seat back angle and seat lowering height can be programmed and set by the remote control. After the program is set, it can run automatically; the actions of each path can run synchronously;

• Door interlock function: When the door is closed, the seat can only move back and forth and retract, and cannot be turned out; the door icon is displayed on remote control;

• Manual emergency function: In the case of electrical damage or power failure, the seat can be retracted manually for emergency;

• Easy operation：It can be operated by the wired remote control or your cellphone;

• pass the impact test, belt pulling force test and CCC test;

• CAN function customization is available;

• Passenger SBR reminder (optional)

• Seat ventilation system (optional)

• Seat heating system (optional)

• Mobile wireless charging system (optional)

• Leg support motor linkage control (optional)

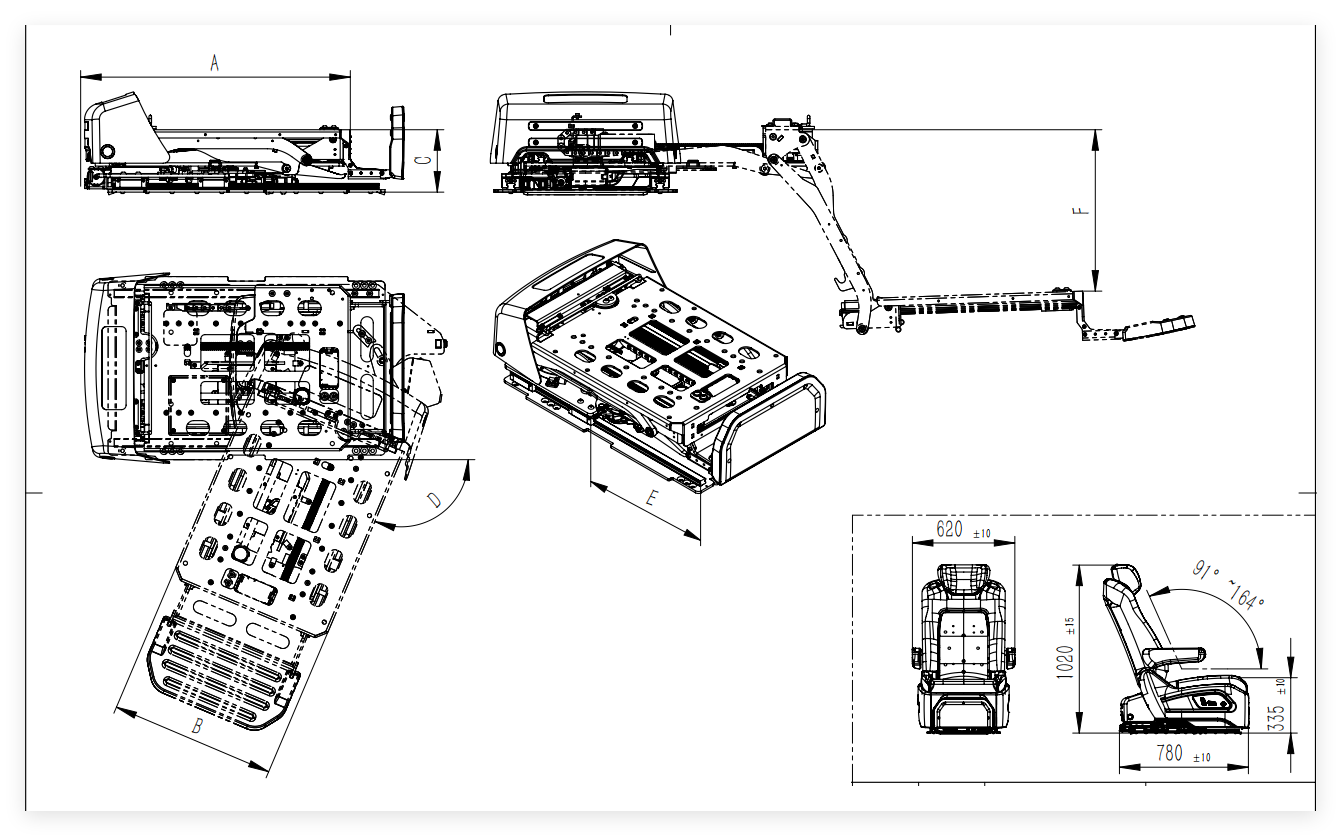

Parameters(unit:mm)

Technical Specifications
