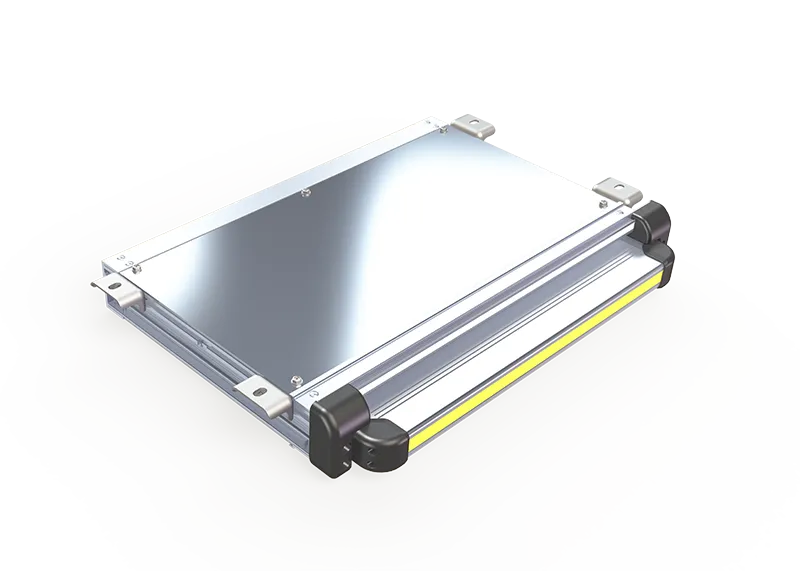

Sliding Electric Steps

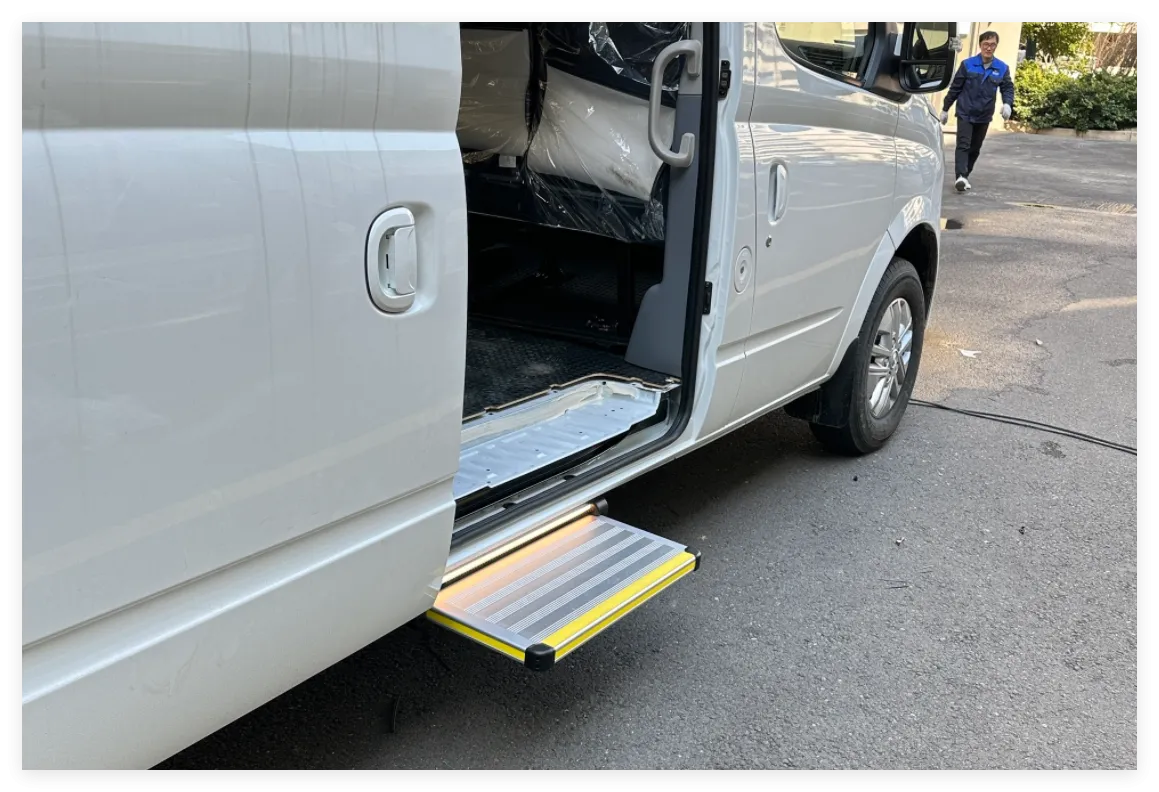

The Sliding Electric Steps are primarily installed under the side door steps of commercial vehicles, school buses, recreational vehicles, and ambulances to facilitate passenger entry and exit. The step frame and platform are crafted from full aluminum profiles, offering lightweight construction with enhanced strength and superior corrosion resistance. The enclosed guide structure ensures stable operation even in harsh environments, effectively shielding the steps from rainwater and mud accumulation.
Product Description
Patented products:Sliding Electric Steps have multiple patents;
Manual emergency function:In the case of electrical damage or power failure, the step can be easily retracted without tools by manual;
Door interlock function:When the door is closed, the step will retract and cannot extand out ;
Dustproof function：Piston rod type motion structure design, with higher dust-proof effect, can adapt to various harsh environments;
Protection function:Equipped with automatic stop function when encountering obstacles;
Sleep mode:After stepping back for 10 seconds, it automatically enters sleep mode,and the static current less than 0.1mA;
Passed EMARK certification;
Compatible with LIN bus and CAN bus;
Product Parameters

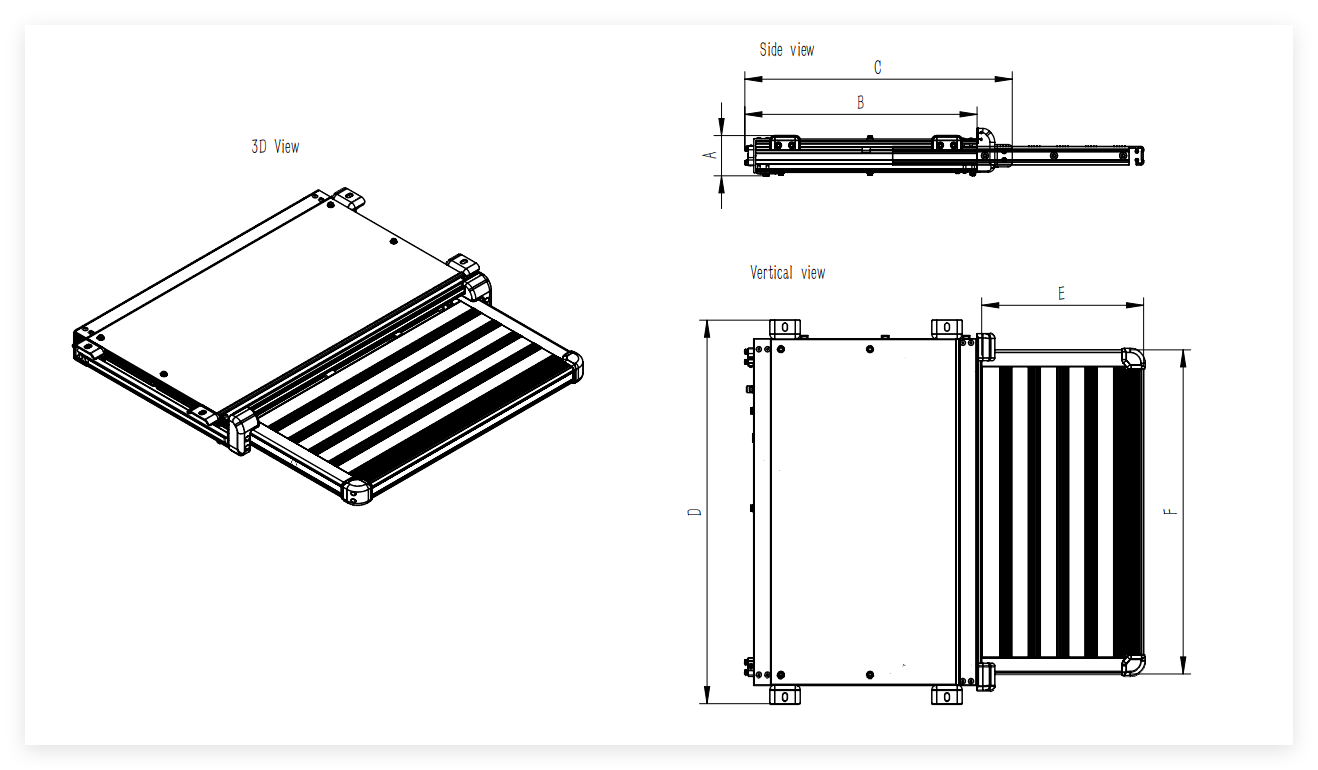

Parameters(unit:mm)
| Model | Thickness A | Depth B | Total depth C | Total width D | Step depth E | Step width F | Net Weight |
| SEF-500x235 | 74 | 365 | 433 | 610 | 235 | 500 | 9kg |
| SEF-600x300 | 74 | 430 | 498 | 710 | 300 | 600 | 12kg |
| SEF-900x300 | 74 | 430 | 498 | 1010 | 300 | 900 | 15kg |
| SEF-1200x300 | 74 | 430 | 498 | 1310 | 300 | 1200 | 18kg |
Technical Specifications
| Voltage | Power | Loading capacity |
| 12VDC/24VDC | 30W | 250kg |
