Automatic Step Wheelchair Lift

The Automatic Vehicle Lift for Middle/Rear Doors is a space-efficient accessibility solution designed for buses, coaches, and other vehicles. Installed on the middle or rear doors, this lift serves as a step when not in use, eliminating the need for a separate step at the door. It does not obstruct passenger boarding or alighting and does not take up interior space, making it an ideal choice for vehicles with limited space.

The lift is equipped with safety features, including handrails on both sides of the pillars and an anti-slip platform, ensuring passenger safety during lift operation. The platform extends and retracts automatically, and the front baffle is also operated automatically. The entire system is hydraulically driven and controlled by a standard handheld switch, offering smooth, stable, and reliable performance.

Applications

• Public Transport Vehicles: Buses, coaches, and minibuses.

• Private and Commercial Fleets: Suitable for retrofit and accessibility upgrades in older or newly built vehicles.

• Passenger Safety Enhancement: Ideal for passengers with limited mobility.

Space-Saving and Efficient Design

• Installed on middle or rear vehicle doors, acting as a dual-purpose step that is only used when needed.

• Does not occupy interior space, ensuring maximum usability within the vehicle.

Safety Features for Passenger Protection

• Handrails are provided on both sides of the pillars, allowing passengers to safely board and alight from the vehicle.

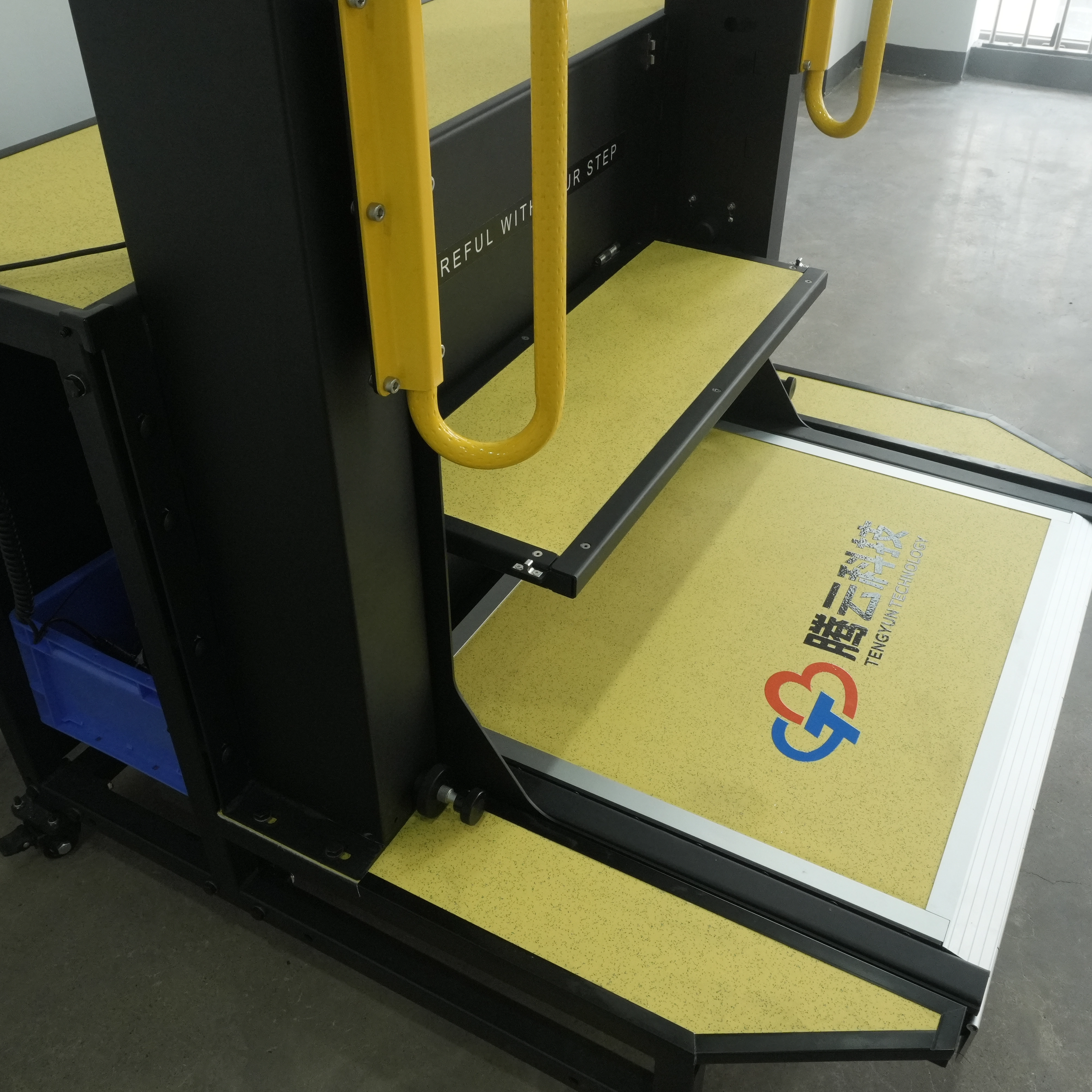

• Anti-slip platform ensures stable footing during use.

Fully Automatic Operation

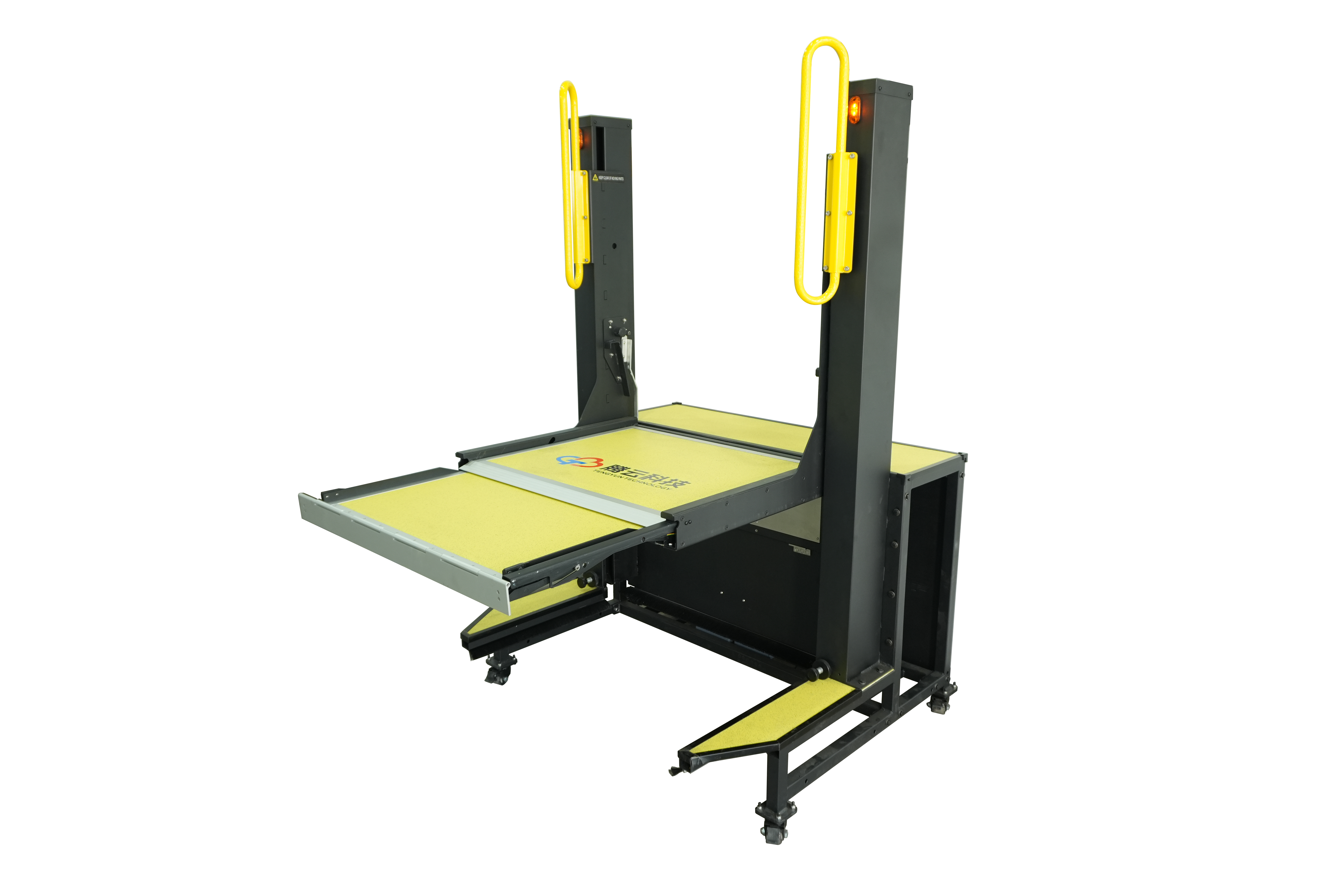

• Automatic extension and retraction of the platform and front baffle.

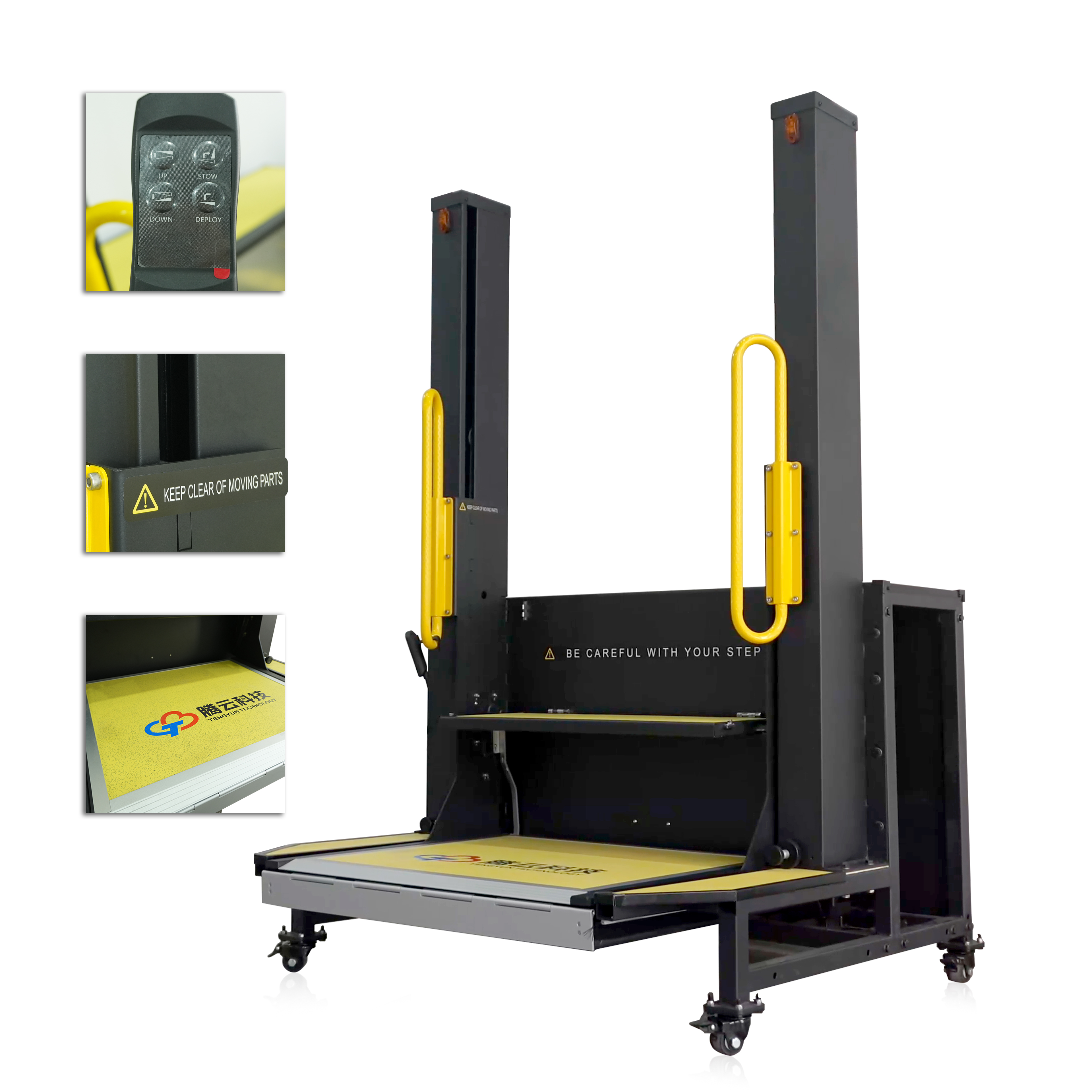

• Operated using a standard handheld switch, offering ease of control for drivers or operators.

• Hydraulic drive system ensures smooth and reliable operation under all conditions.

Noise and Vibration Reduction

• Platform locking mechanism on both sides of the pillars eliminates vibrations and noise during vehicle movement.

Corrosion-Resistant and Durable

• Powder-coated surface treatment offers excellent corrosion resistance, ensuring long-lasting durability in various weather conditions.

Compliance and Certifications

This vehicle lift complies with EU standards, ensuring its safety and reliability for public transport use:

• ECE R10 – EU E-Mark Certification

• EN 1756-2 – European Wheelchair Lift Standard

• GB 13094 – National Mandatory Regulation

These certifications guarantee that the lift meets essential safety and performance criteria for use in commercial and public transport vehicles.

• Load Capacity: 350 kg

• Rated Voltage: 12/24 V

• Rated Power: 800 W

FAQ

What is the purpose of this automatic vehicle lift?

This automatic vehicle lift is designed for middle or rear vehicle doors, offering a space-saving solution. It serves as a step when not in use and ensures safe boarding and alighting for passengers without taking up interior space.

How does the lift operate?

The lift operates automatically, with hydraulic drive powering the platform extension and retraction. The platform is controlled via a handheld switch, providing smooth and stable operation.

What safety features does the lift have?

The lift includes handrails on both sides of the pillars for added safety, as well as an anti-slip platform to ensure a secure and stable environment during use.

Is the lift compliant with international standards?

Yes, this lift meets the ECE R10, EN 1756-2, and GB 13094 standards, ensuring it is safe and reliable for use in public transport vehicles.

What is the load capacity of this vehicle lift?

The lift can support up to 350 kg, making it suitable for most passenger types and vehicle applications.
