S7A
Tengyun
Detachable Lift & Swivel Seats
Changzhou, China (Mainland)
Support
20KG
Product Description
A Professional Electric Lift-and-Swivel Seating System Designed for Accessibility, Access Vehicles, and Automotive Mobility Conversion
Detachable Lift & Swivel Seats
The S7A Series hydraulic rotating lift seat is engineered for passengers with limited mobility, enabling safe, effortless, and dignified vehicle entry and exit.

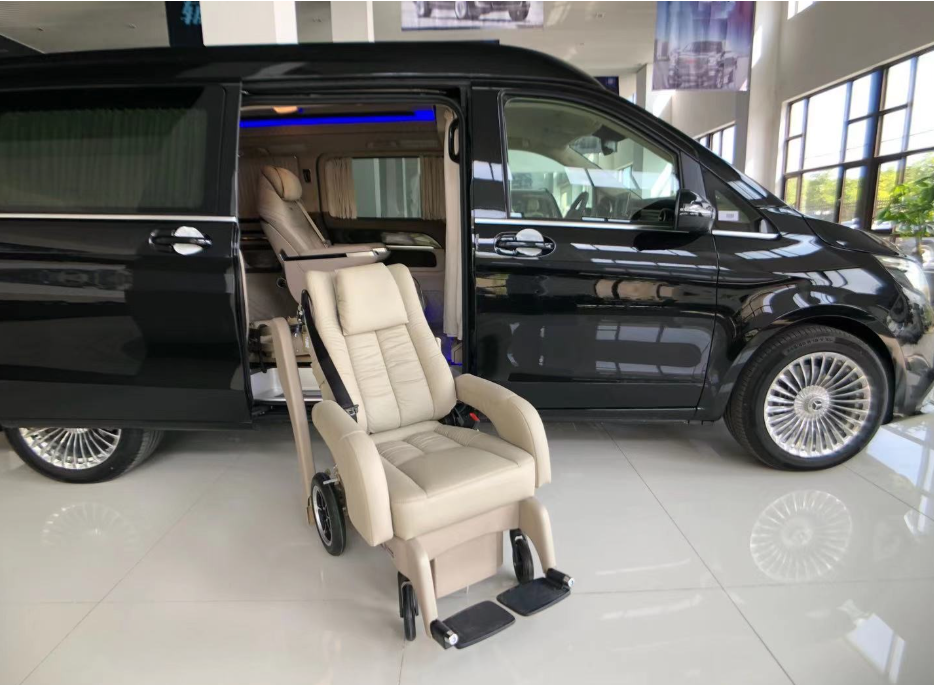

Using a hydraulic lift-and-rotate mechanism, the seat extends smoothly outside the vehicle and can separate from the base to become a manual push wheelchair—offering true door-to-door accessibility.
Available in Left-Rotation (S7AL) and Right-Rotation (S7AR) configurations for various vehicle models including MPVs, vans, and commercial mobility vehicles.
Press the remote-control button to activate hydraulic lowering.

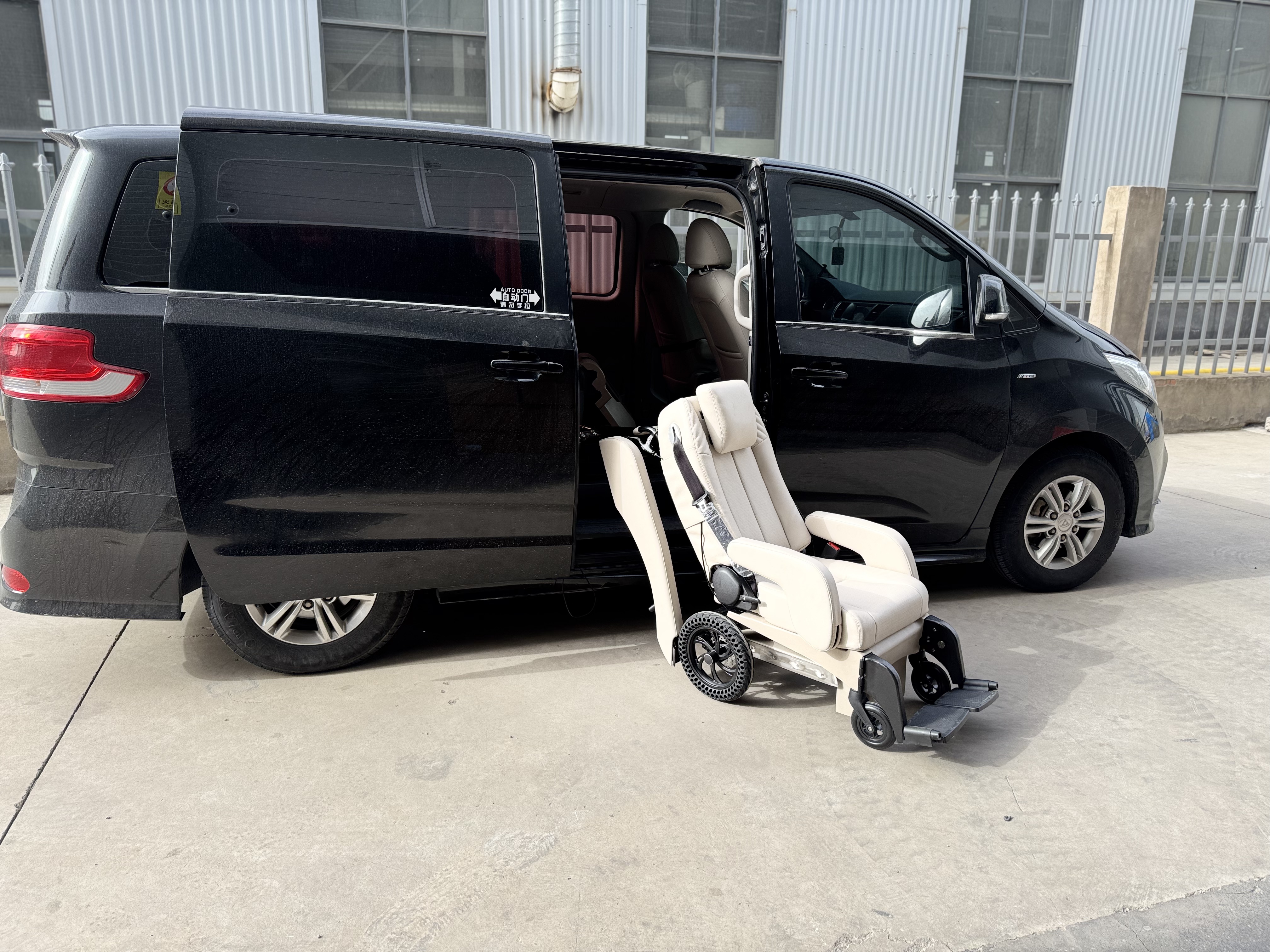

The seat rotates outward and descends to the desired height.

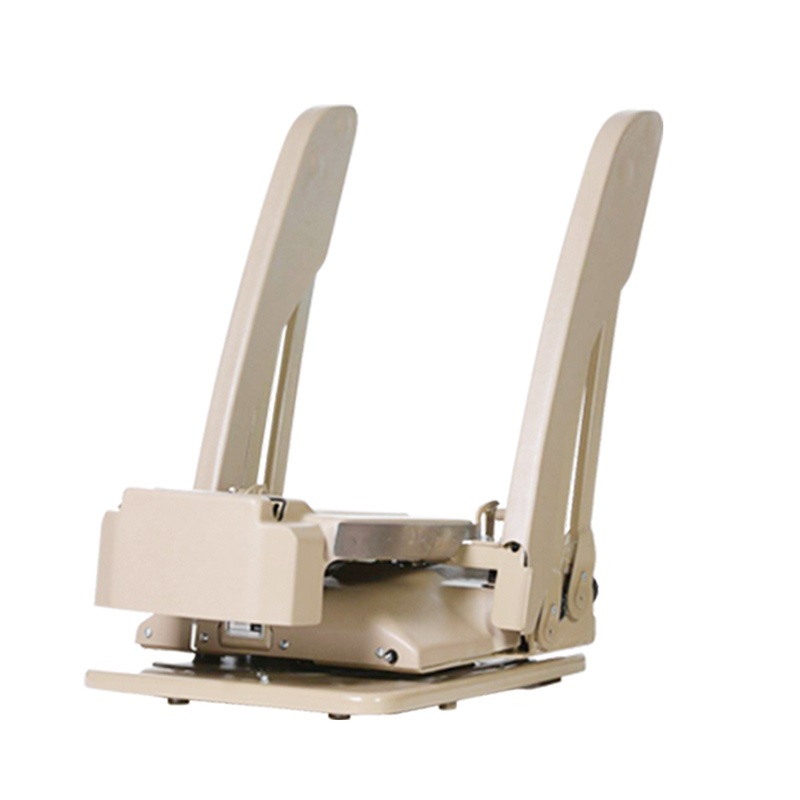

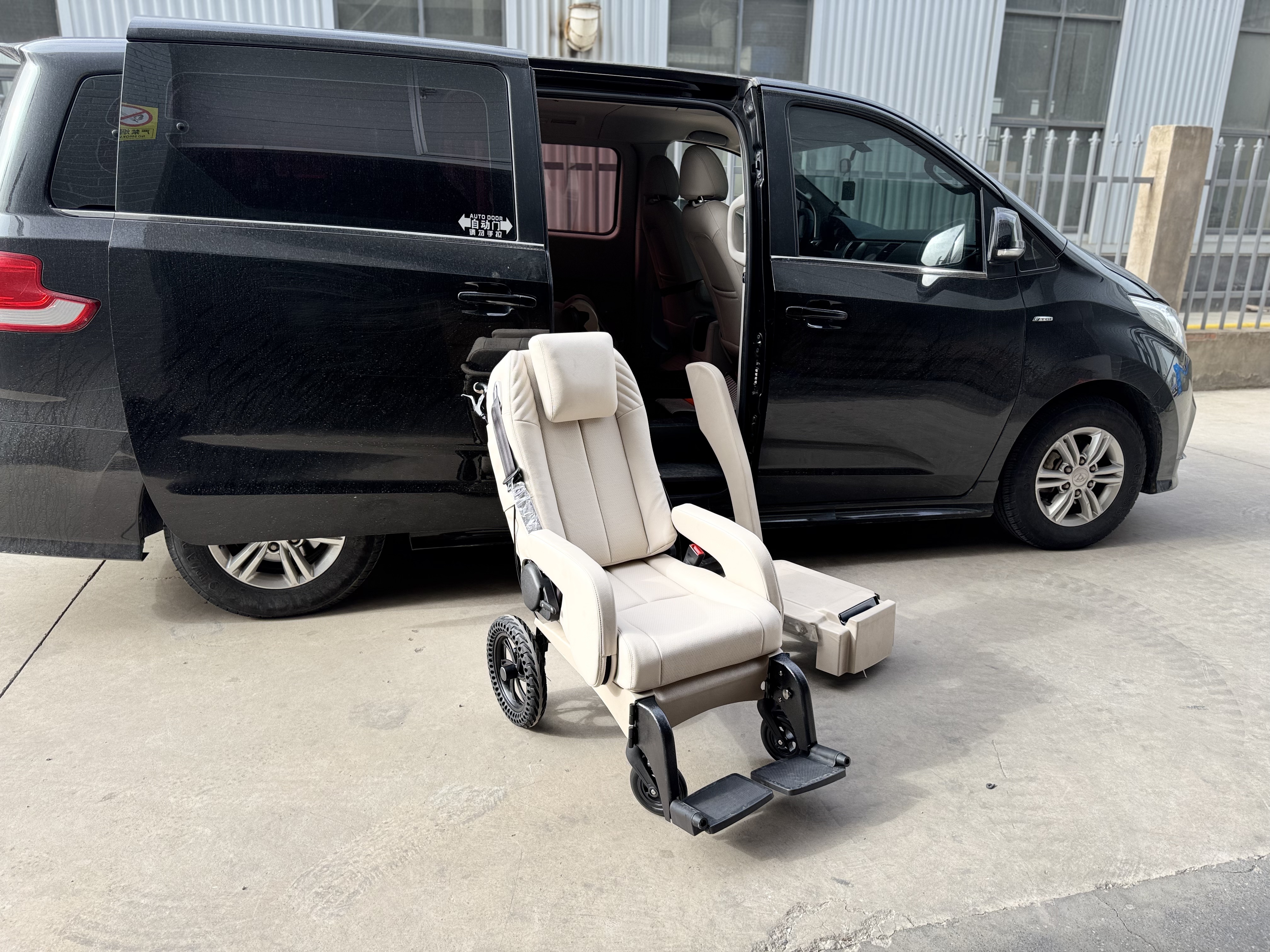

The seat detaches from the lifting mechanism.

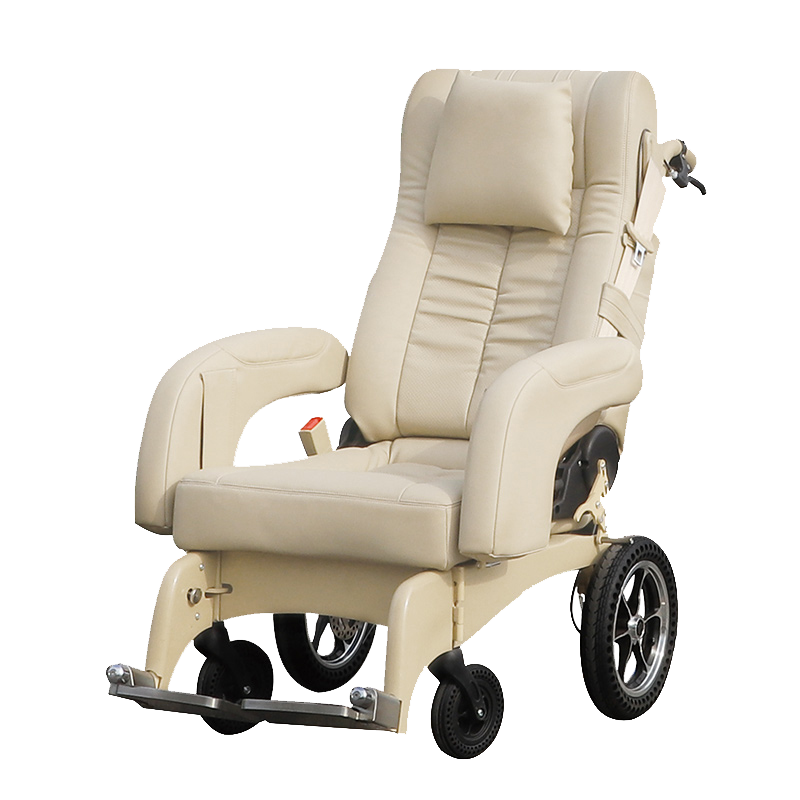

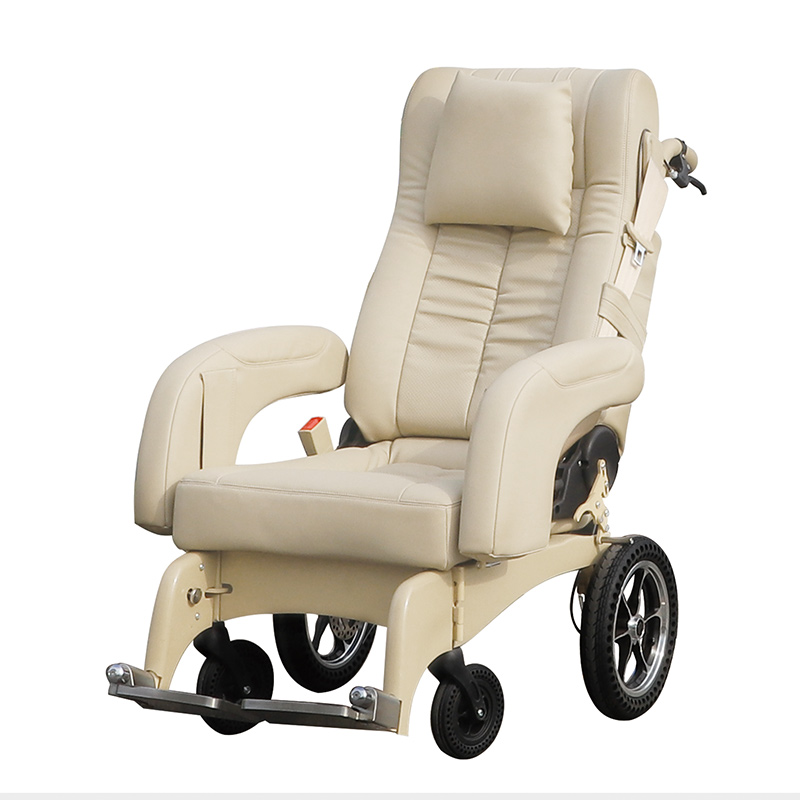

The detached seat becomes a mobile manual wheelchair, ready for indoor or outdoor movement.
This system provides a seamless transition from vehicle travel to ground mobility—removing the need for lifting or manual transfer.
Private MPVs and family vehicles
Accessible commercial vans
School mobility programs
Hospitals, rehabilitation centers, and eldercare institutions
Mobility conversion specialists and vehicle modifiers
The S7A Series enhances safety, independence, and travel comfort for passengers with mobility challenges. Its multifunctional “seat-to-wheelchair” design saves space, reduces caregiver workload, and significantly improves boarding efficiency.
| Load Capacity | 150 kg |
| Lowering Height | F550 mm |
| Rotation Range | 0–105° |
| Motor System | Electric lifting + rotation |
| Voltage | 12V DC |
| Surface Material | Genuine Leather |
| Structure Material | Reinforced Steel |
| Control Options | Remote control + manual button |
| Supported Vehicles | MPV / SUV / Van / Sedan |
| Certifications | CE / ISO / E-Mark |
| Customization | OEM / ODM available |
| Warranty | 36 Months |

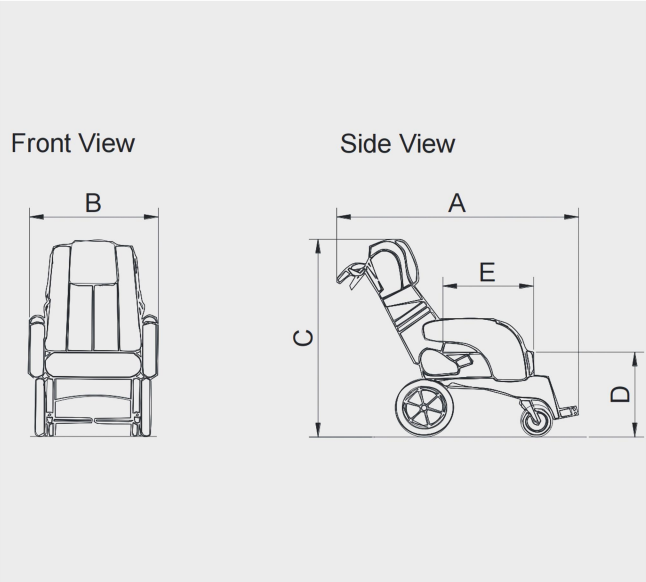

| Model | A | B | C | D (Seat Depth) | E |
|---|---|---|---|---|---|
| S7AR | 1300 | 670 | 1150 | 430 | 500 |
| S7AL | 1300 | 670 | 1150 | 430 | 500 |
| item | value |
| Type | Seat Parts |
| Material | Leather |
| Place Of Origin | China |
| Brand Name | Tengyun |
| Model Number | SLIFT Pro |
| Color | Black\White |
| Sample | Support |
Standard Export Packing
Carton + Wooden Case
Custom Packaging Available
Each unit packed securely to prevent damage during transport
Delivery Time: within 15 days after payment
Shipping Port: Shanghai / Ningbo / Shenzhen as requested
Transport Mode: by Sea / Air / Express / Rail
Lead Time depends on order quantity
Tracking number will be provided after shipment
FOB / CIF / EXW / DDP / DDU available
OEM / ODM orders welcome
Sample available before mass production
1. What is a detachable hydraulic cantilever lift and swivel seat?
A detachable hydraulic cantilever lift and swivel seat is an accessible vehicle seat system that uses a hydraulic mechanism to move the seat outward, rotate, and lower it to assist passengers entering and exiting the vehicle. The detachable design allows easy removal when not needed.
2. How does the hydraulic cantilever mechanism work?
The hydraulic cantilever system smoothly lifts, rotates, and extends the seat outward, lowering it to a convenient transfer height. This mechanism enhances comfort and safety for elderly passengers or those with limited mobility.
3. What types of vehicles can this detachable lift and swivel seat be installed in?
This hydraulic cantilever lift and swivel seat can usually be installed in SUVs, MPVs, vans, and some sedans. Special mounting brackets may be required depending on the vehicle model.
4. Can the detachable seat be removed easily when not in use?
Yes. The detachable design allows the seat to be removed from the vehicle without complicated disassembly, making it convenient when a standard vehicle interior is needed.
5. Is the detachable lift and swivel seat safe for everyday use?
Yes. The hydraulic lift and swivel seat is designed with stable support structures, secure locking positions, and tested safety mechanisms to ensure reliable and daily safe operation.
