Product Description
A Professional Electric Lift-and-Swivel Seating System Designed for Accessibility, Vehicles, and Automotive Mobility Conversion
Lift Swivel Accessible Vehicle Seat
The Lift & Swivel Accessible Vehicle Seat is an advanced mobility solution engineered for passengers with limited mobility, elderly users, and individuals requiring assisted vehicle access. Built with a high-strength steel structure, premium leather upholstery, and a smooth power-driven lifting mechanism, this seat helps users enter and exit a vehicle safely, comfortably, and independently.
Designed specifically for MPVs, SUVs, vans, and sedans, the system integrates seamlessly into welfare vehicles, accessibility conversion programs, and medical transportation fleets. With its 180 kg load capacity, F390 mm lowering height, and 0–113° rotation range, the seat provides unrivaled support, stability, and convenience for both users and caregivers.
Whether serving personal mobility needs or fulfilling the requirements of automotive OEM/ODM manufacturing, this lift-and-swivel seat offers the durability, efficiency, and customization needed for global B2B markets.
With a single button, the seat automatically rotates outward and lowers to a safe boarding height. Users can easily transfer into the seat from wheelchairs, walkers, or standing positions without physical strain.
Reinforced steel structure and precision-engineered electric components guarantee excellent stability and safety. This high load rating makes it suitable for adult, elderly, and rehabilitation use in daily transport.
The seat rotates outward up to 113°, allowing enough space for comfortable boarding and reducing the risk of awkward movements or instability.
The seat lowers up to F390 mm from vehicle height, ideal for passengers with mobility challenges. This distance accommodates most standard wheelchair heights.
The high-quality leather surface offers long-term durability and a soft touch, making long-distance rides more pleasant. The material is easy to clean and suitable for commercial transport environments.
The electric lifting and rotation components operate smoothly and silently. Noise-reduction engineering ensures the system performs reliably in medical or professional transport settings.
This lift-and-swivel seat is commonly used in:
Personal disability vehicles
Family cars for elderly passengers
Welfare and rehabilitation transportation
Taxi and ride-sharing services requiring accessibility upgrades
Non-emergency medical transport fleets
Automotive conversion workshops
OEM mobility vehicle manufacturing
Patented product: The S5B series lift-and-swivel welfare seats hold multiple design patents.
Vehicle-grade control system: The control system uses vehicle-grade design, offering more stable and reliable performance, while also meeting the rigorous EMC testing standards for vehicle-mounted electronics.
Lightweight design: The seat mechanism is on average about 10% lighter than competitor products on the market, yet its structure strength can support a 180 kg load without damage or plastic deformation in any part.
Programmable motion path: Via the hand controller, you can program the seat’s rotation angle, forward/backward movement distance, backrest angle and lowering height. Once set, the mechanism will operate automatically according to the preset path.
Door interlock function: When the door is closed, the welfare seat cannot rotate out of the vehicle—only forward/backward adjustment and backrest angle adjustment are permitted.
Manual emergency function: In the event of electrical fault or power failure, the seat can be manually retracted back into the vehicle.
Convenient control: The seat can be operated via wired remote or your mobile phone.
Passed dynamic crash test and static strength pull-test.
CAN communication functionality.
Passenger SBR reminder function (optional).
Seat ventilation function (optional).
Seat heating function (optional).
Wireless phone charging function (optional).
Leg-rest motor linkage control function (optional).

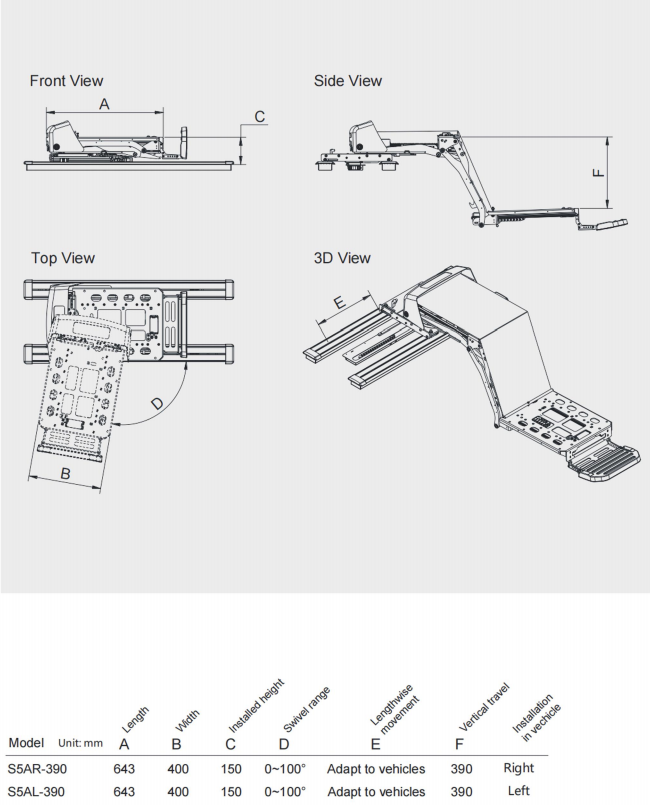

| Load Capacity | 180 kg |
| Lowering Height | F390 mm |
| Rotation Range | 0–100° |
| Motor System | Electric lifting + rotation |
| Voltage | 12V DC |
| Surface Material | Genuine Leather |
| Structure Material | Reinforced Steel |
| Control Options | Remote control + manual button |
| Supported Vehicles | MPV / SUV / Van / Sedan |
| Certifications | CE / ISO / E-Mark |
| Customization | OEM / ODM available |
| Warranty | 36 Months |
| item | value |
| Type | Seat Parts |
| Material | Leather |
| Size | 643*400*144 |
| Place Of Origin | China |
| Brand Name | Tengyun |
| Model Number | SLIFT Pro |
| Color | White |
| Sample | Support |
Standard Export Packing
Carton + Wooden Case
Custom Packaging Available
Each unit packed securely to prevent damage during transport
Delivery Time: within 15 days after payment
Shipping Port: Shanghai / Ningbo / Shenzhen as requested
Transport Mode: by Sea / Air / Express / Rail
Lead Time depends on order quantity
Tracking number will be provided after shipment
FOB / CIF / EXW / DDP / DDU available
OEM / ODM orders welcome
Sample available before mass production
1. What is a lift and swivel seat with a long slide rail?
A lift and swivel seat with a long slide rail is an accessible vehicle seat designed to rotate outward and slide along an extended rail. This mechanism allows the seat to move further outside the vehicle, making it easier for elderly passengers or people with limited mobility to transfer safely.
2. How does the lift and swivel seat help passengers enter and exit a vehicle?
The seat rotates toward the vehicle door and slides outward on the long rail before lowering to a comfortable transfer height. After the passenger is seated, the system lifts and moves the seat smoothly back into the vehicle.
3. What types of vehicles can this lift and swivel seat be installed in?
The long slide rail lift and swivel seat can typically be installed in SUVs, MPVs, vans, and some sedans. Installation usually requires a vehicle-specific mounting bracket to ensure stability and safety.
4. What is the load capacity of the lift and swivel transfer seat?
Most lift and swivel seats are designed with a strong metal frame and can support a high load capacity suitable for elderly users or disabled passengers. The exact weight capacity may vary depending on the configuration of the seat system.
5. Is the lift and swivel seat safe for daily use?
Yes. Accessible vehicle swivel seats are designed with safety mechanisms such as stable rail systems, secure locking positions, and durable seat structures to ensure safe and reliable daily operation.
