MR3A
Tengyun

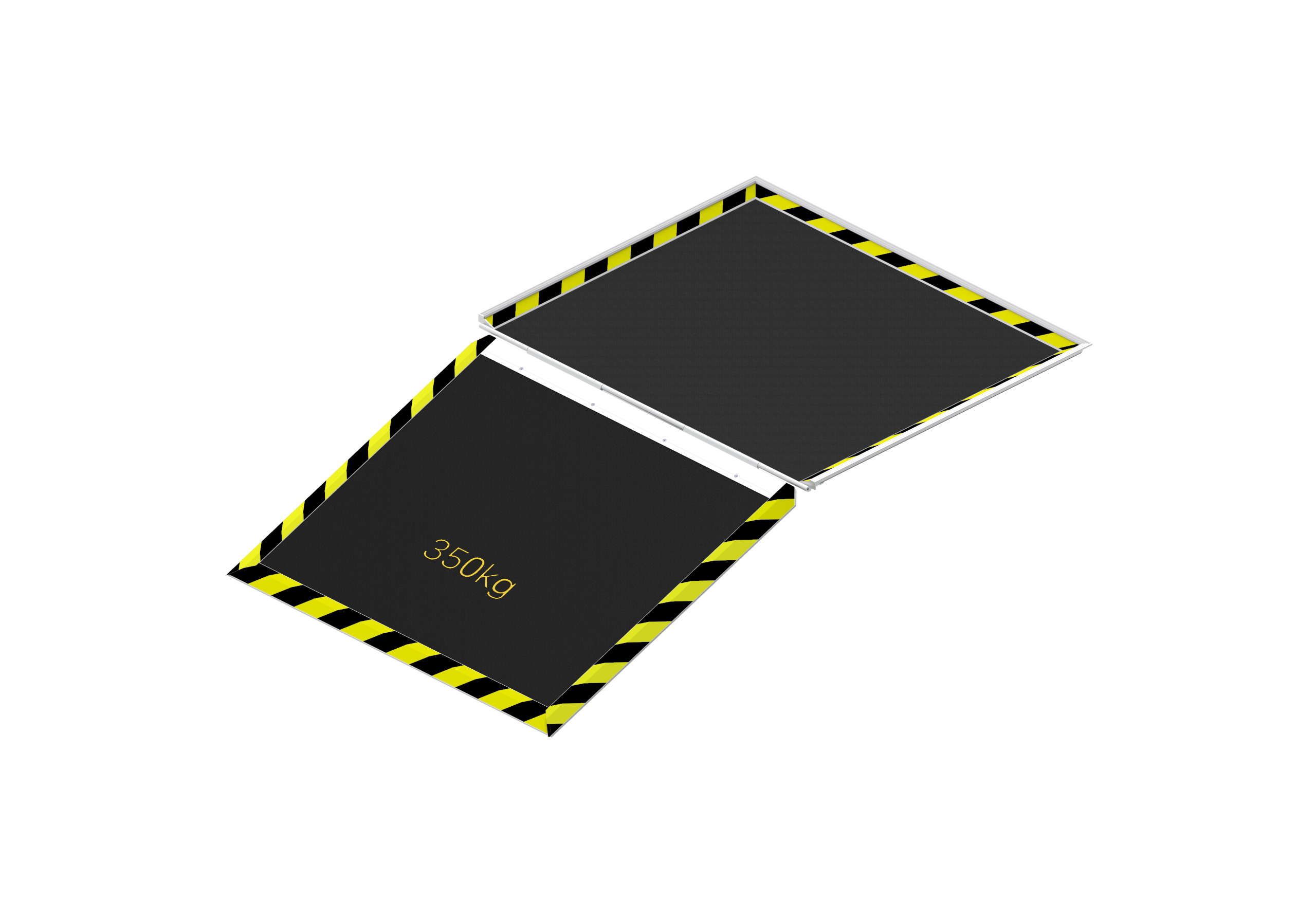

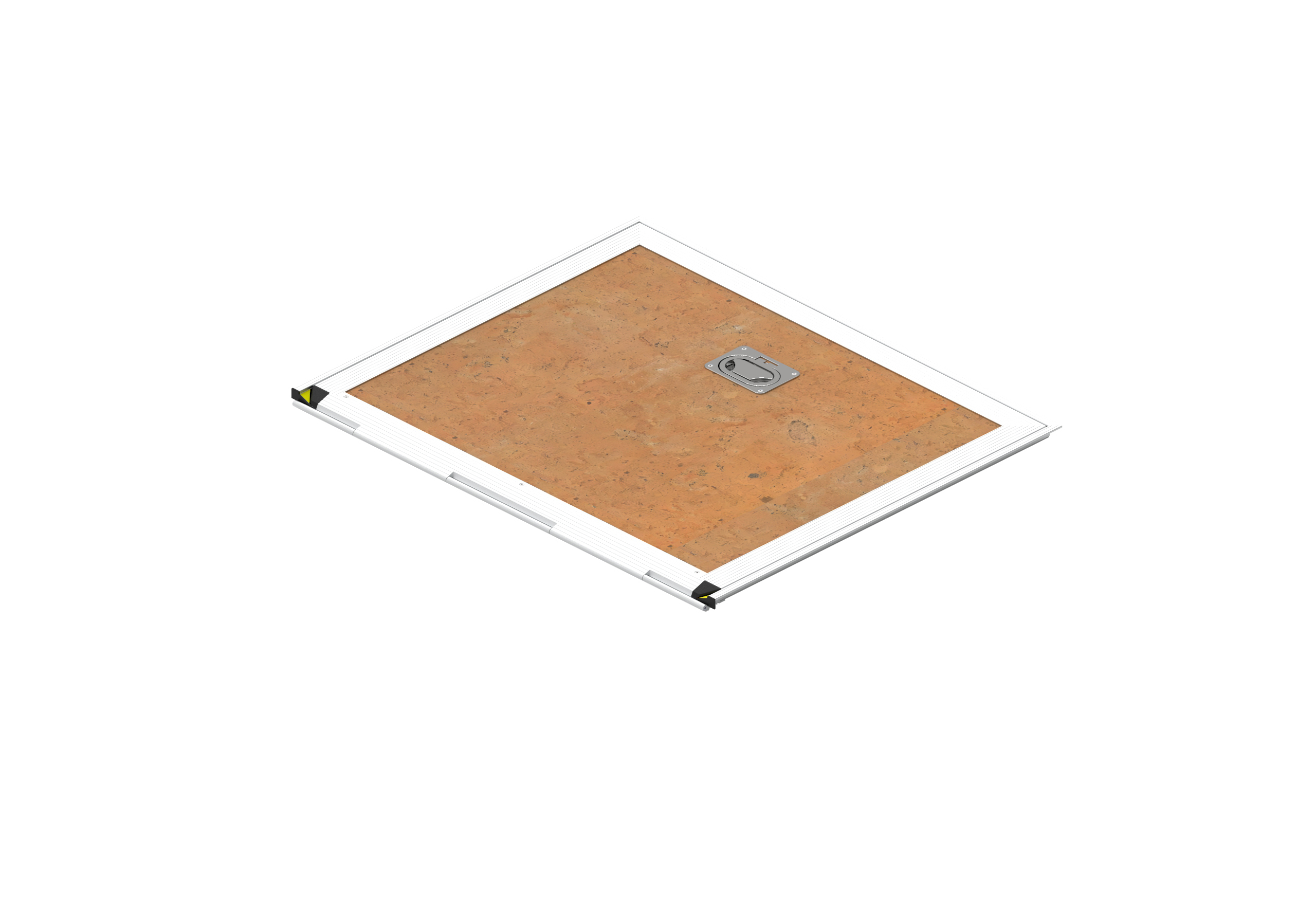

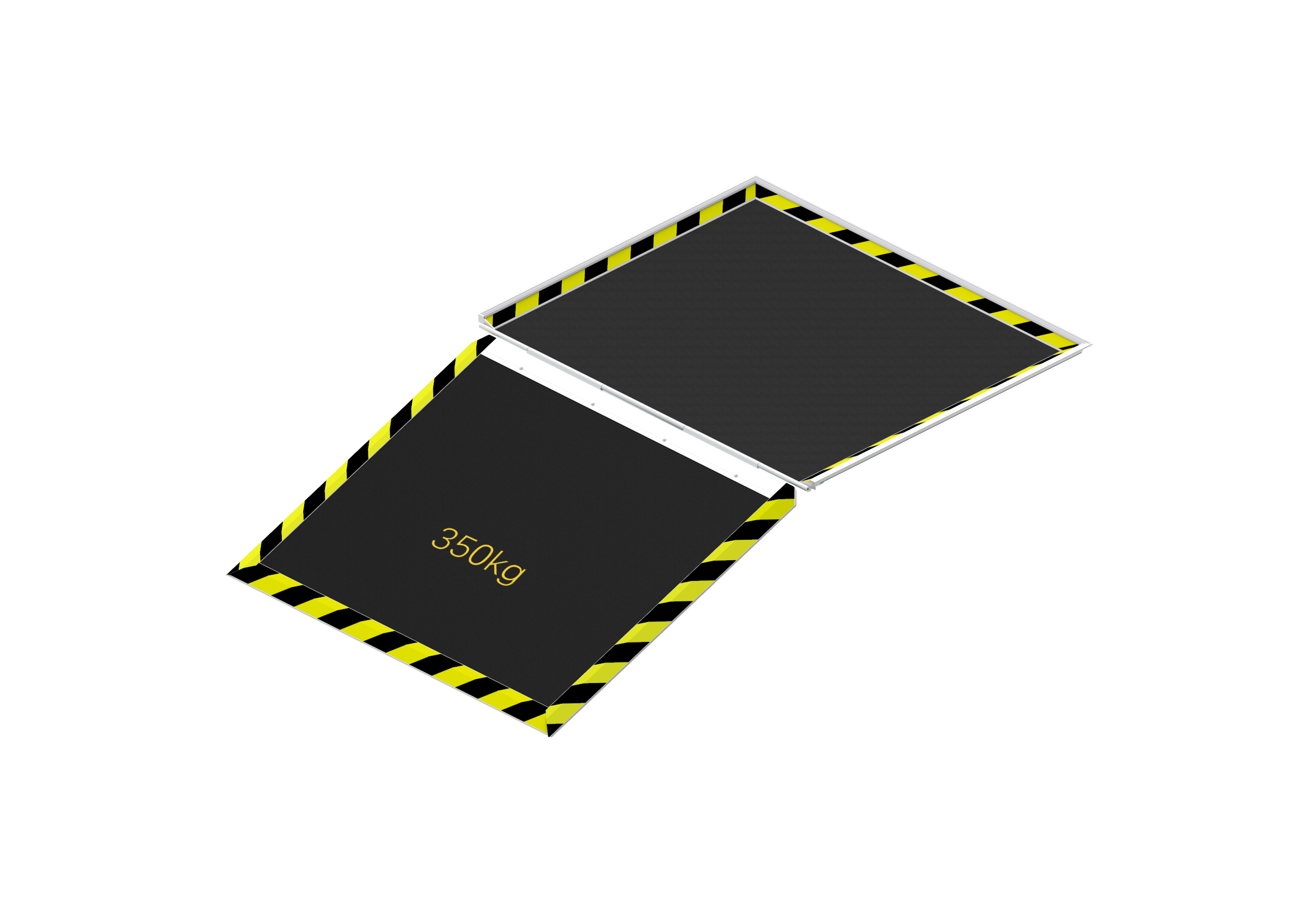

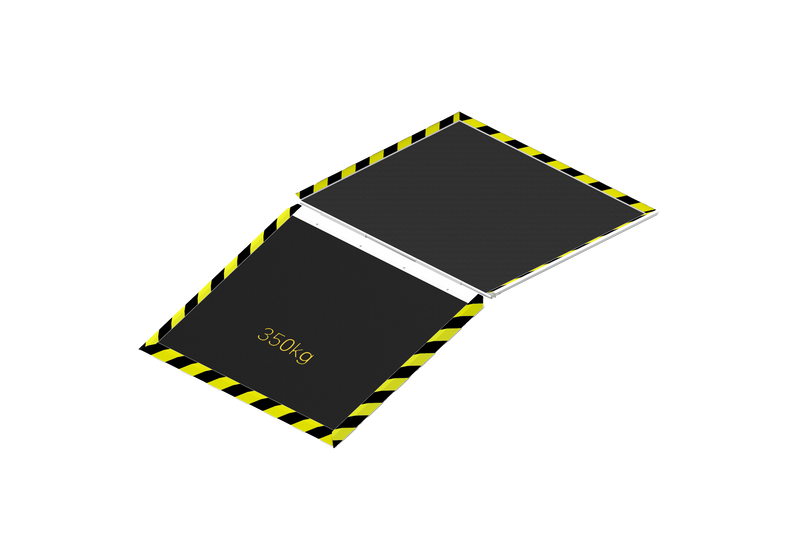

Manual Access Ramp – Fold Type
Changzhou, China (Mainland)
Support
Steel
Product Description
The Manual Access Ramp – Fold Type is a reliable and cost-effective solution designed to improve vehicle accessibility for wheelchair users. With a manual folding mechanism, the ramp can be easily deployed and stored, providing smooth and hassle-free operation.
Constructed with aluminum profile edge beams and a 304 stainless steel base plate, this ramp offers excellent strength, durability, and corrosion resistance. It is designed to withstand harsh environments, including water, dust, and low temperatures, making it suitable for long-term use in various conditions.
The installation preserves the vehicle’s chassis ground clearance, ensuring no compromise to driving performance. Ideal for accessible vans and mobility vehicles, this folding wheelchair ramp enhances convenience, safety, and independence for users.
The ramp features lightweight aluminum edge beams combined with a 304 stainless steel platform, ensuring durability while maintaining manageable weight.
The surface is designed with an anti-slip texture, providing secure traction for wheelchair users in different weather conditions.
The manual flip design allows quick deployment and easy storage without complex systems, reducing maintenance needs.
Equipped with a safety interlock system, preventing operation when the vehicle is not in a safe state, enhancing user safety.
The large pull ring handle is ergonomically designed for easy grip, making operation simple and labor-saving.
The ramp offers strong resistance to:
Water
Dust
Low temperatures
Ensuring reliable performance in demanding environments.
This wheelchair ramp is manufactured in accordance with:
2006/42/EC Machinery Directive
GB13094 Standard
Ensuring safety, durability, and compliance with international requirements.

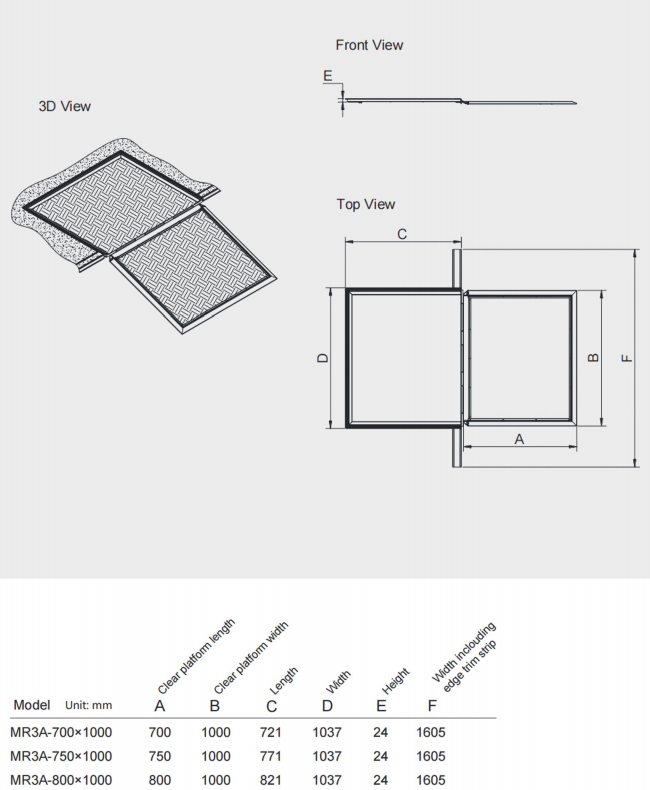

| Parameter | Specification |
|---|---|
| Load Capacity | 350 kg |
| Operation Type | Manual Folding |
| Material | Aluminum + 304 Stainless Steel |
| Installation | Vehicle Rear or Side Entry |
The folding wheelchair ramp is ideal for:
Accessible vans
Commercial mobility vehicles
Medical transport vehicles
Family vehicles with accessibility modifications
Its simple structure and reliable performance make it a preferred choice for both personal and commercial use.
1. What is a manual folding wheelchair ramp?
A manual folding wheelchair ramp is a portable or vehicle-mounted ramp that can be folded and unfolded by hand, providing easy access for wheelchair users.
2. Is this ramp suitable for vans and accessible vehicles?
Yes, this folding wheelchair ramp for vans is specifically designed for vehicle installation and works well with most accessible vehicle conversions.
3. What materials are used in this wheelchair ramp?
The ramp uses aluminum profiles and 304 stainless steel, offering a strong, corrosion-resistant, and durable structure.
4. How much weight can the ramp support?
This ramp has a load capacity of 350 kg, suitable for most wheelchairs and users.
5. Is the ramp safe in wet or slippery conditions?
Yes, the anti-slip surface wheelchair ramp design ensures stable traction even in wet or challenging environments.
