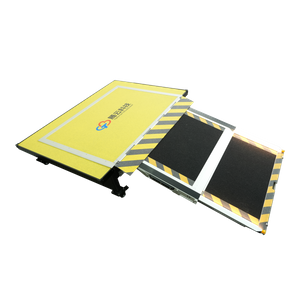

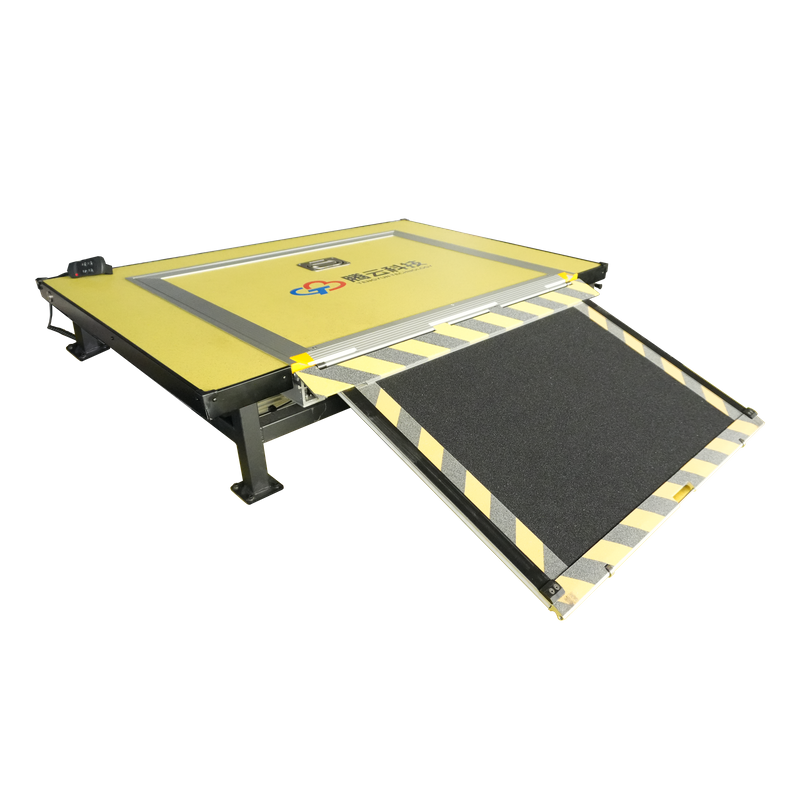

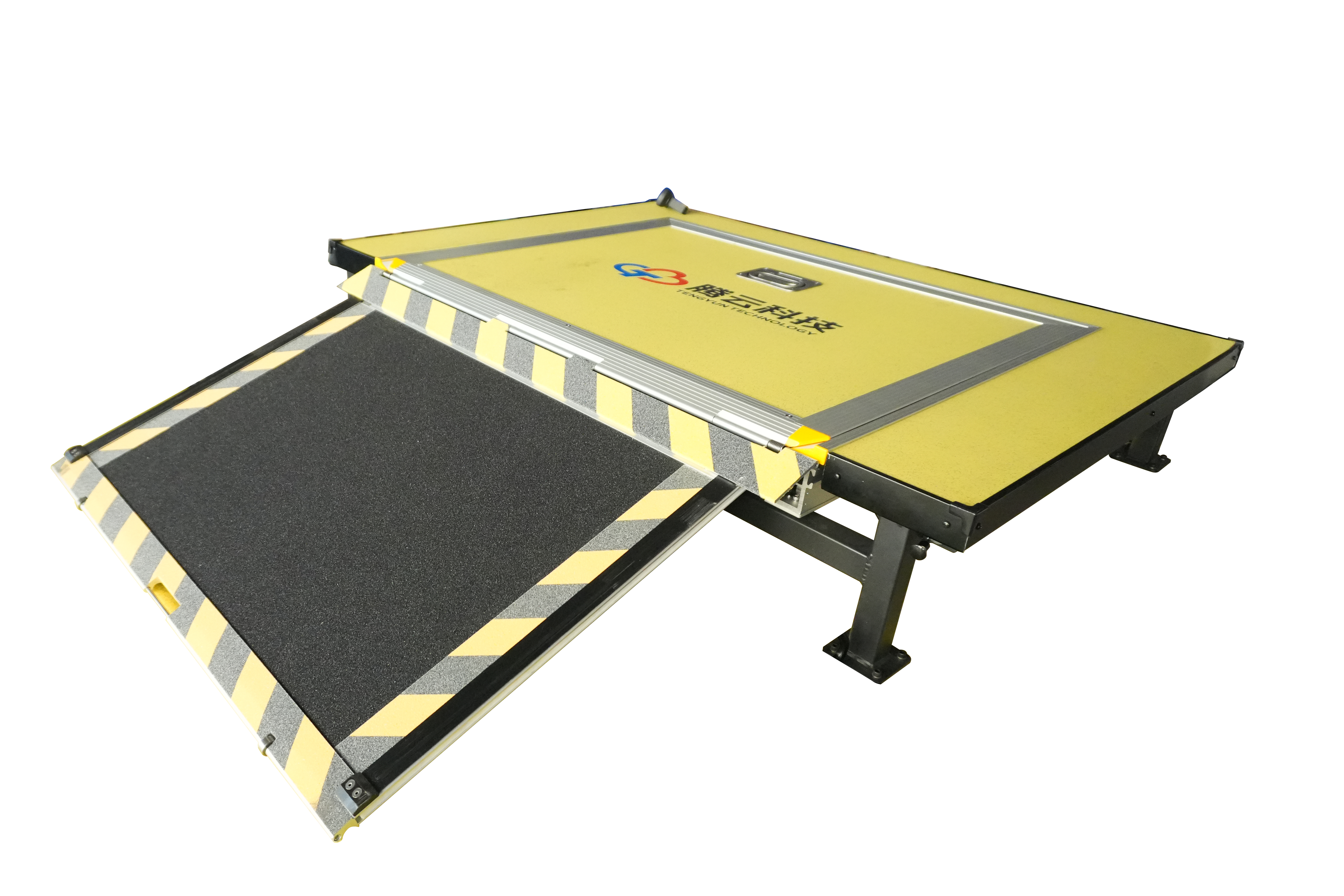

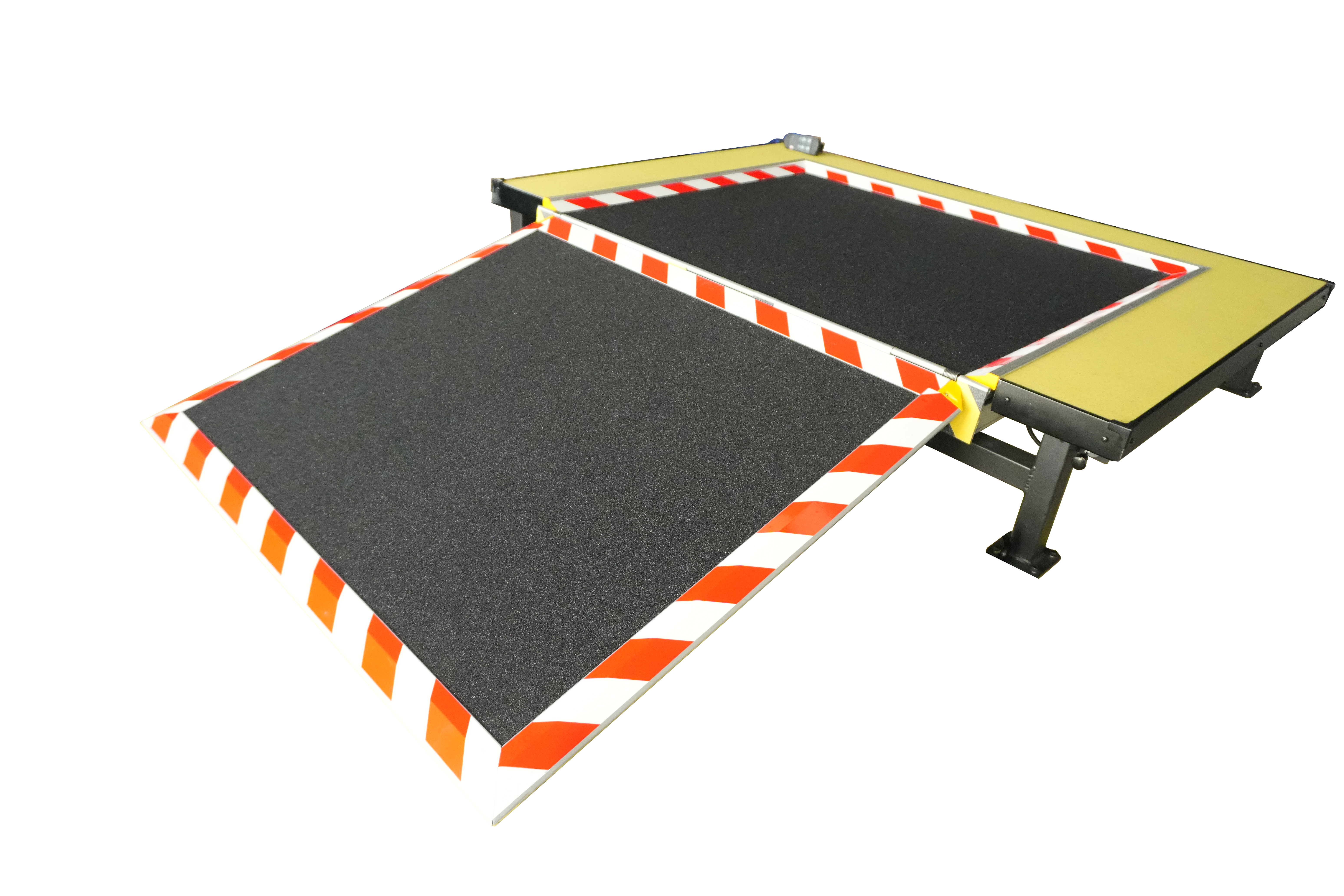

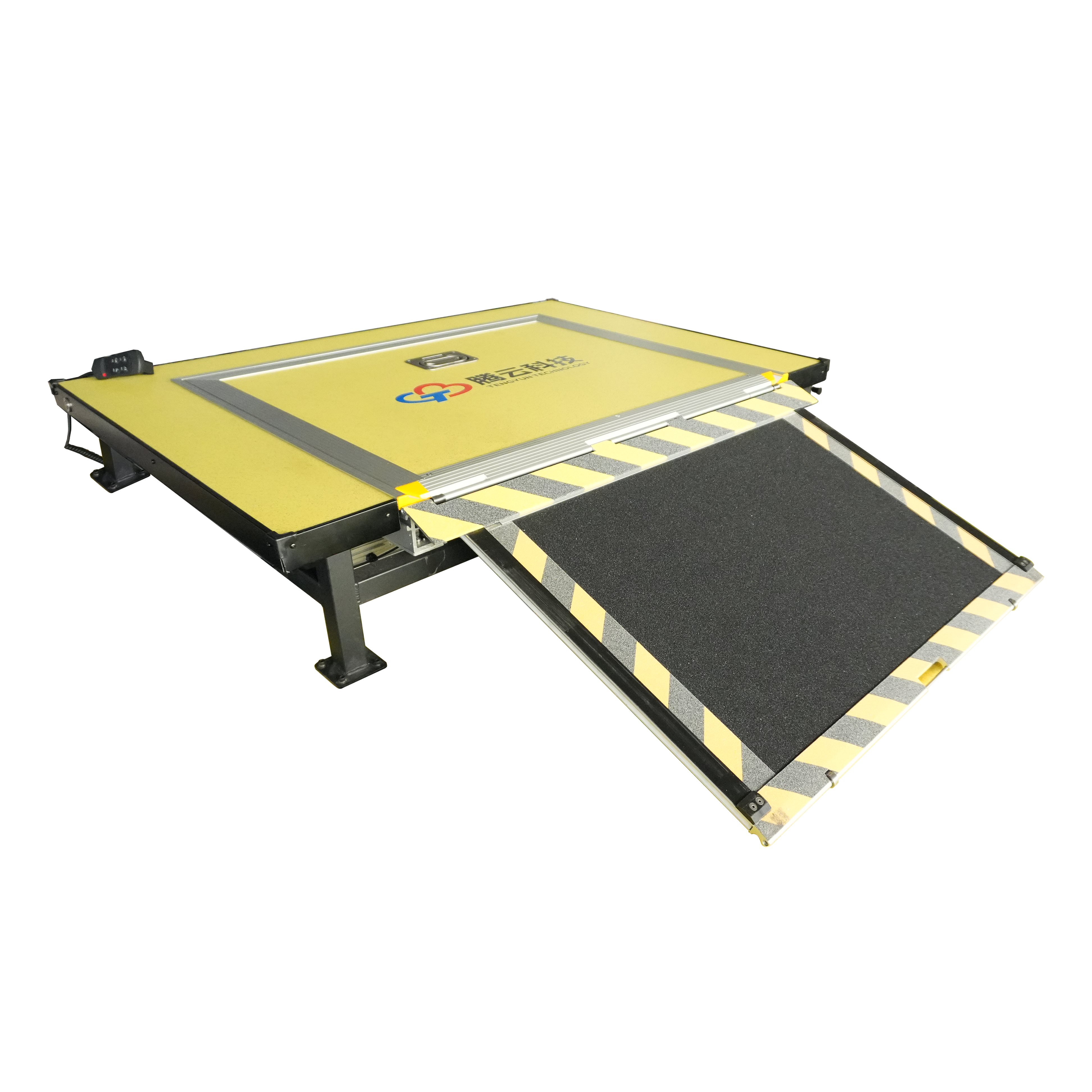

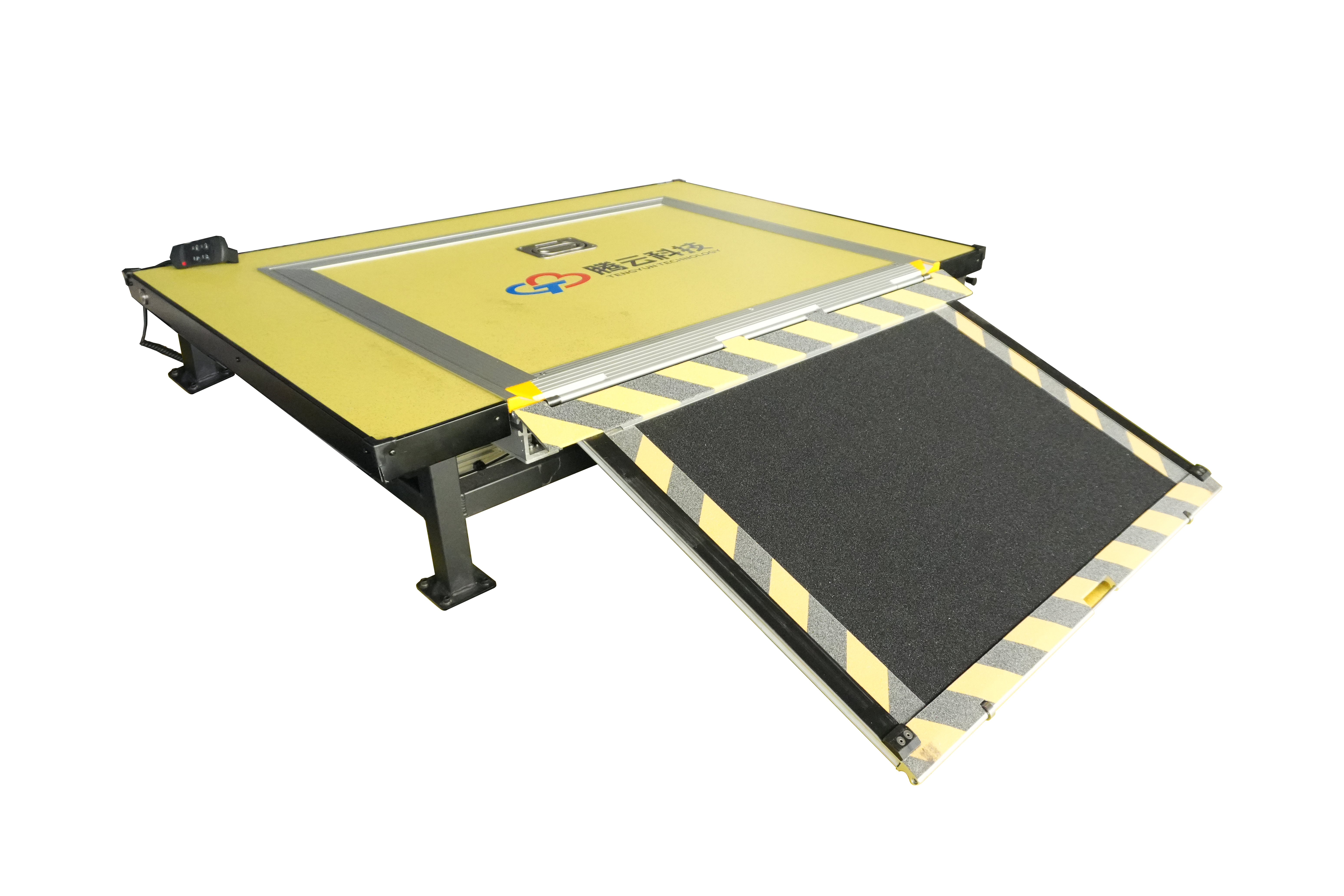

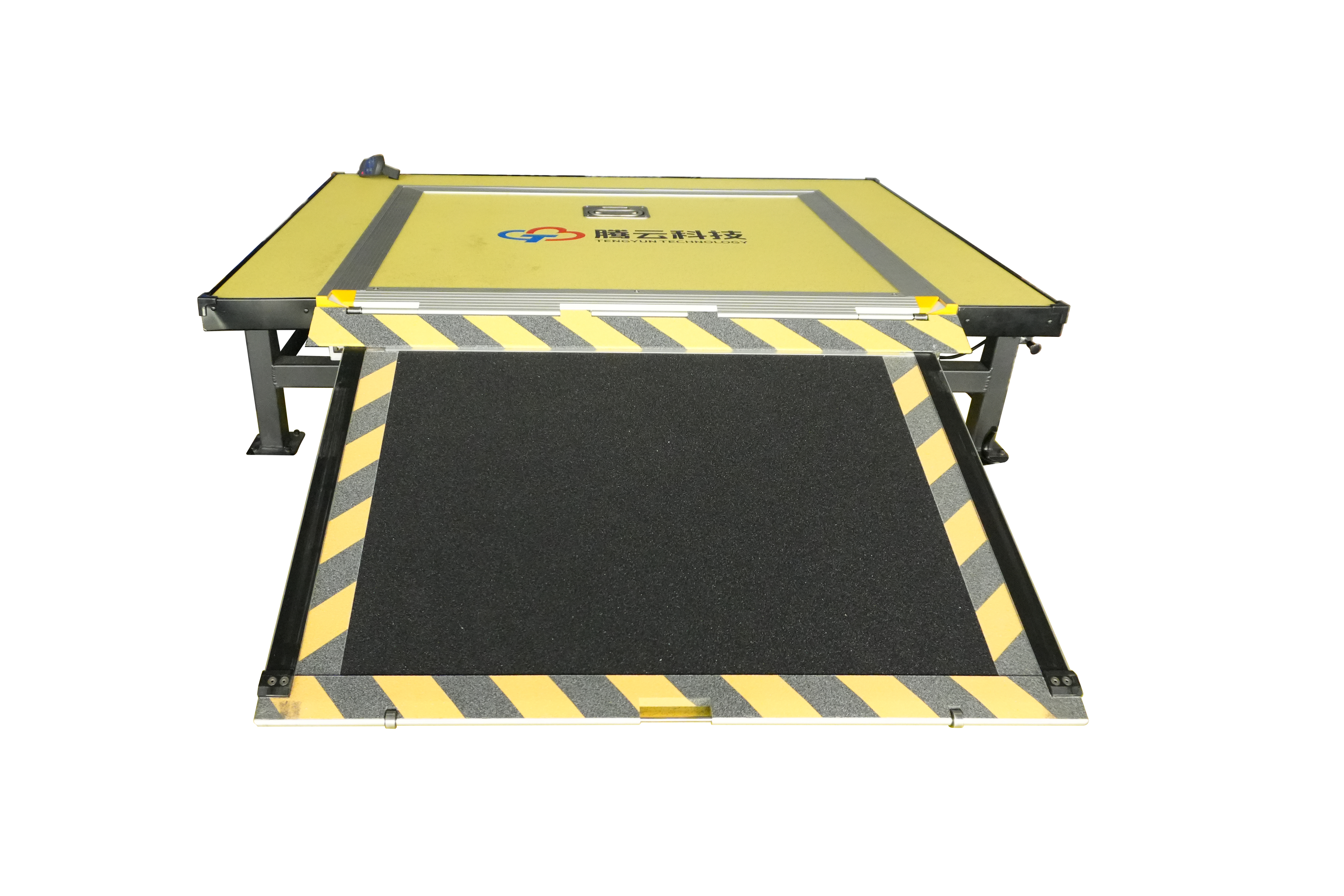

Power Access Ramps - Telescopic and Fold Integrated Type

Designed for Urban Low-Floor Buses

This wheelchair ramp is engineered for modern low-floor buses used in urban public transport systems. The ramp installs seamlessly beneath the vehicle entrance without affecting ground clearance or chassis passability, maintaining full vehicle performance in all road conditions.

Seamless Floor-Level Access

• Flush alignment with the bus floor after deployment

• No step gap between platform and vehicle interior

• Ideal for city buses, BRT systems, and accessible public transport fleets

Dual-Mode Operation for Maximum Reliability

Electric and Manual Integrated Design

The PowerAccess Ramps system combines:

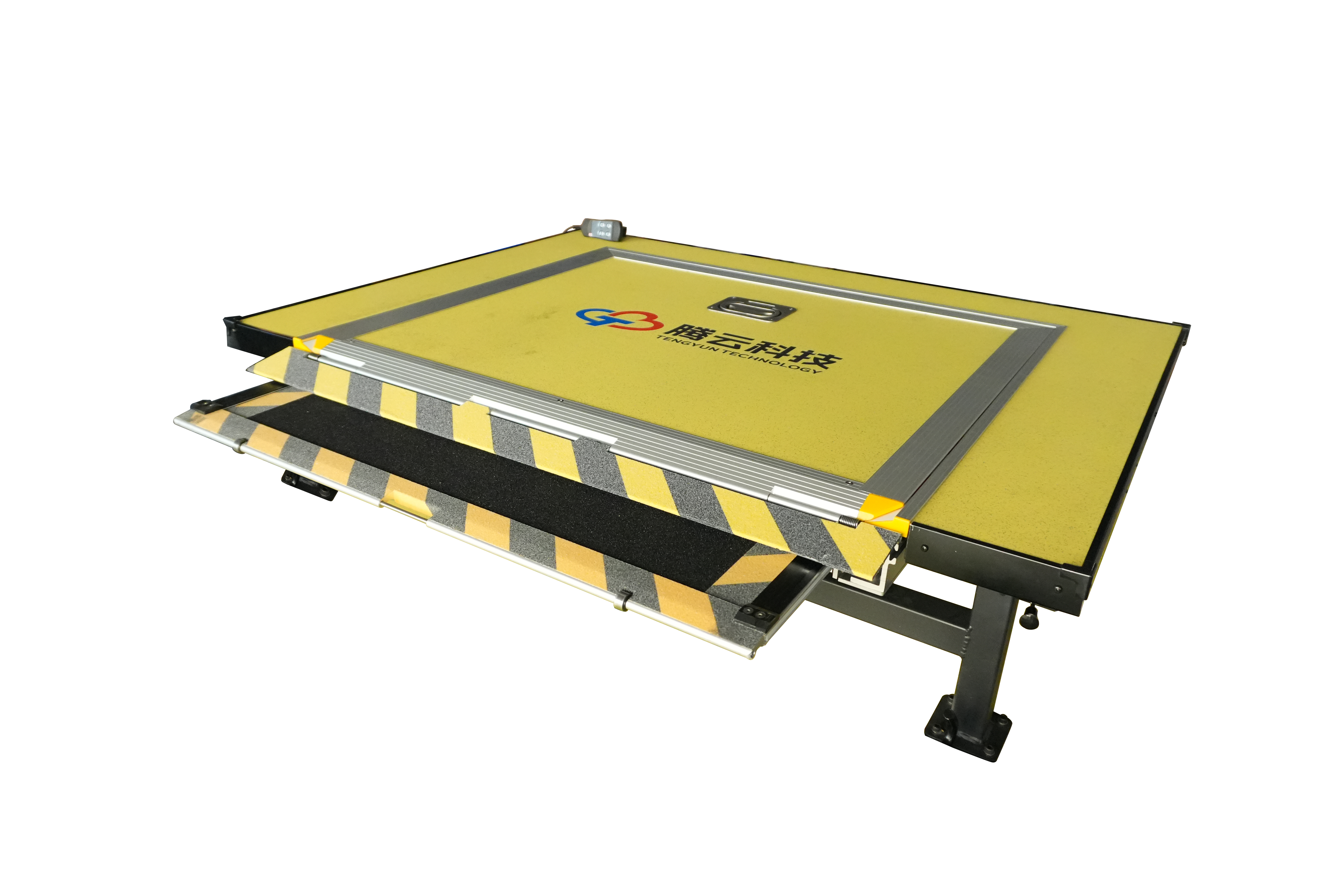

• Electric telescopic deployment for daily operation

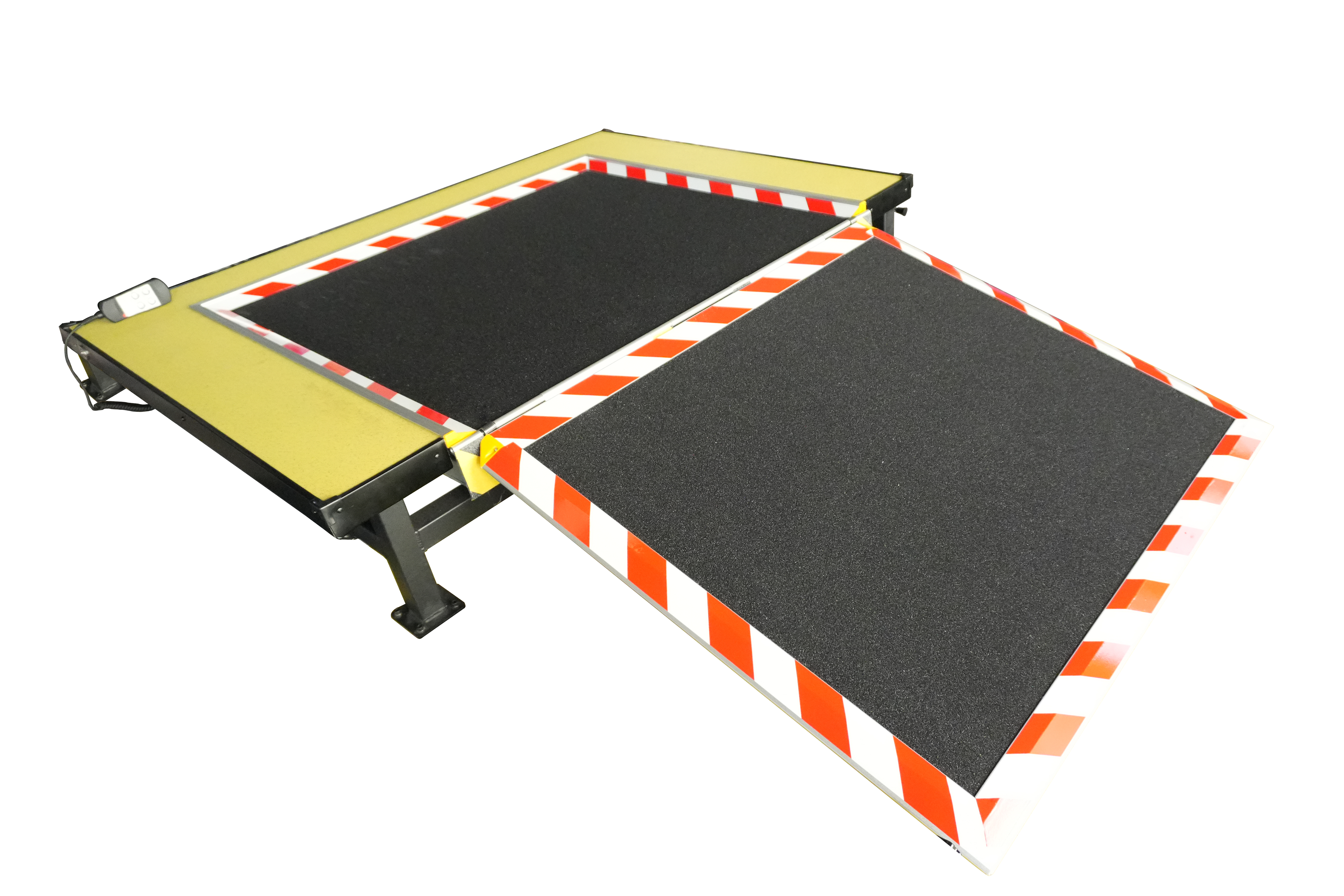

• Manual fold-out function for emergency or power-failure scenarios

This dual-mode configuration ensures uninterrupted accessibility under all conditions.

Smart Safety Interlock System

• Door interlock function prevents ramp operation when the door is not fully open

• Audible buzzer alerts during ramp movement

• Obstacle detection when the platform extends

Lightweight, Durable, and Corrosion-Resistant Structure

Advanced Aluminum Construction

• Main frame side beams made of high-strength aluminum profiles

• Load-bearing platform constructed with aluminum honeycomb panels

This structure provides:

• Reduced overall system weight

• Excellent corrosion resistance

• Long service life in humid and coastal environment

Excellent Environmental Protection

The ramp system is designed for demanding outdoor conditions:

• Superior waterproof, dustproof, and anti-freeze performance

• Reliable operation in rain, snow, and low-temperature environments

• Suitable for year-round public transport use

Certified Safety and Regulatory Compliance

The PowerAccess Ramps system meets international and domestic safety standards:

• ECE R10 European E-Mark Certification

• Compliant with GB 13094 national mandatory regulations

These certifications ensure electromagnetic compatibility, operational safety, and suitability for commercial vehicle installation.

Key Product Features

• Electric and manual integrated operating mode

• Anti-slip platform surface for enhanced user safety

• Audible warning during platform movement

• Door interlock safety system

• Manual emergency operation function

• Obstacle sensing during platform extension

• 15 kg pressure sensing function (optional)

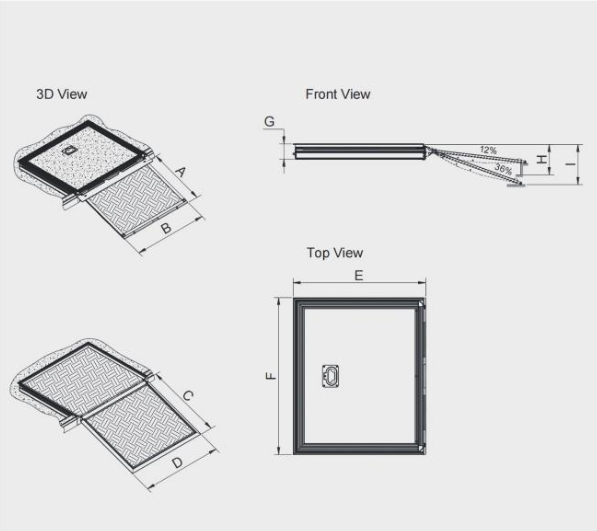

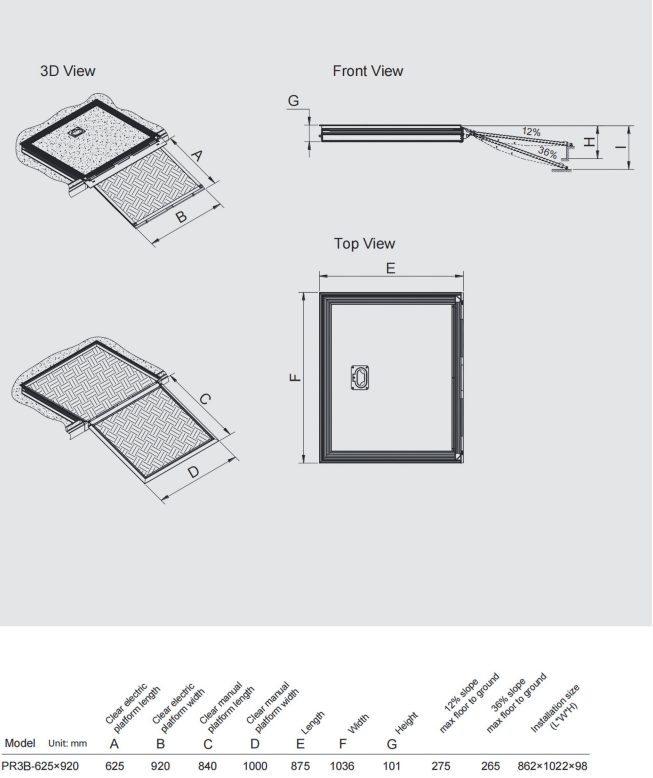

Technical Specifications

Performance Parameters

• Rated Load Capacity: 350 kg

• Rated Voltage: 12 V / 24 V

• Motor Power: 80 W

Typical Applications

• Urban low-floor city buses

• Accessible public transportation fleets

• Municipal and government transit systems

• Barrier-free public mobility solutions

Why Choose PowerAccess Ramps?

• Designed specifically for low-floor bus accessibility

• Dual-mode operation ensures maximum reliability

• Lightweight aluminum structure reduces vehicle load

• Fully certified for public transportation use

• Long-term durability with minimal maintenance

FAQ

1. What is a telescopic and fold integrated power access ramp?
A telescopic and fold integrated power access ramp is a vehicle-mounted accessibility ramp that combines telescopic extension and folding design with powered operation. It extends outward and unfolds automatically to create a smooth, stable entry surface for wheelchair users.

2. How does the power access ramp work?
The ramp uses an electric motor to extend the telescopic sections and then fold down into position. This allows users to deploy the ramp with minimal effort via remote control or switch, making it ideal for wheelchair access in vans, buses, or other accessible vehicles.

3. What types of vehicles can the telescopic and fold integrated power ramp be installed on?
These power access ramps are typically installed on mobility vans, wheelchair-access vehicles, buses, and some MPVs. Vehicle-specific brackets and installation kits may be required depending on the model.

4. Is the power access ramp safe for wheelchair users?
Yes. Power access ramps are designed with high-strength materials, secure ramp locking systems, and anti-slip surfaces to ensure safe and stable access for wheelchair passengers. Most installations also include safety sensors and automatic inhibition during vehicle movement.

5. Can the ramp accommodate different wheelchair sizes and weights?
Yes. The ramp platform is engineered to support a range of wheelchair widths and weights, accommodating both manual wheelchairs and powered wheelchairs. Specific capacity details may vary by model and vehicle configuration.
