Wheelchair Winchs

Model:
WW3A
Brand:
Tengyun
Product Name:
Wheelchair Winch
Place Of Origin:
Changzhou, China (Mainland)
Sample:
Support
Weight:
2KG
Material:
Steel


Availability:



Inquiry

Product Description

Product Description

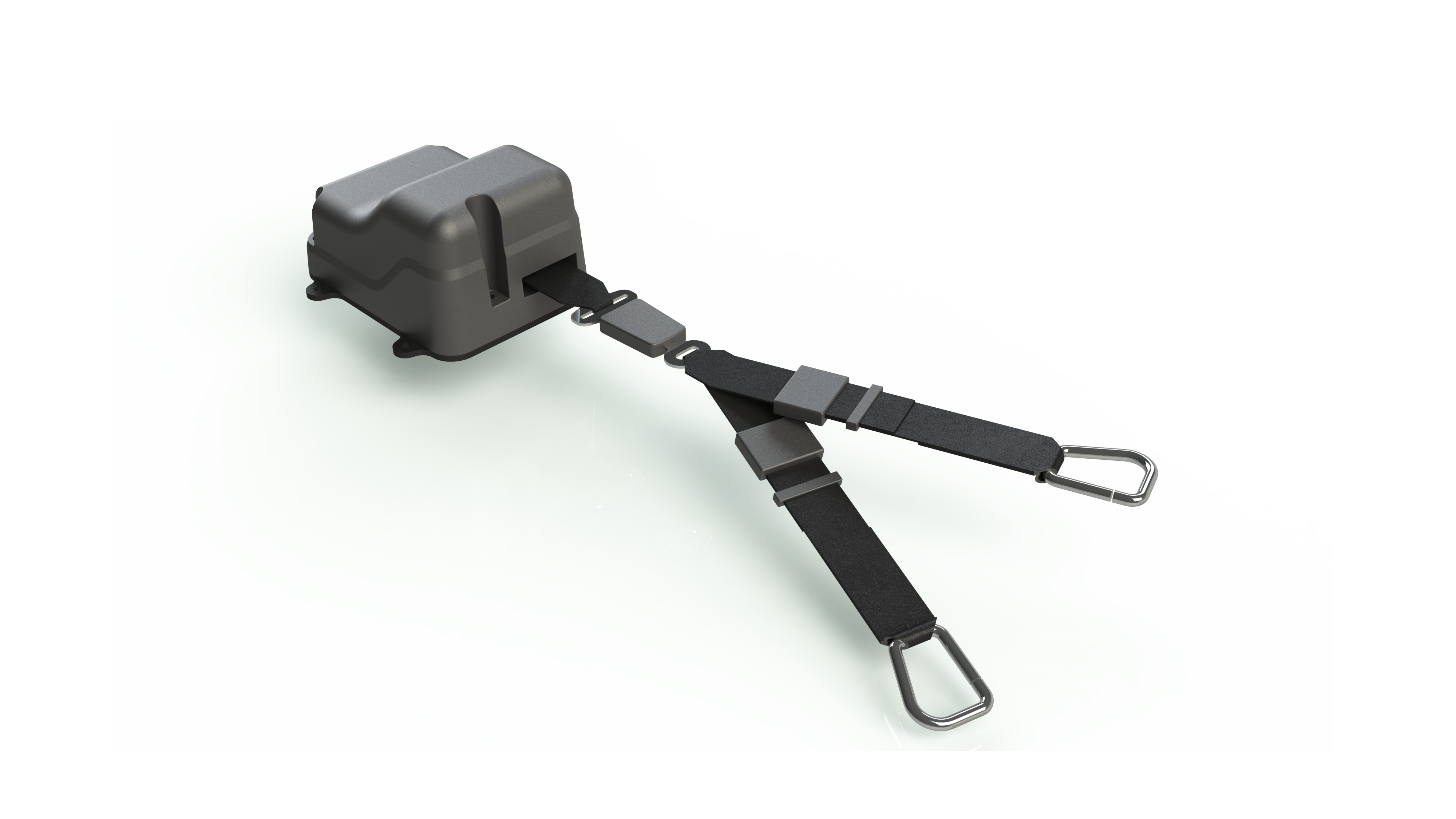

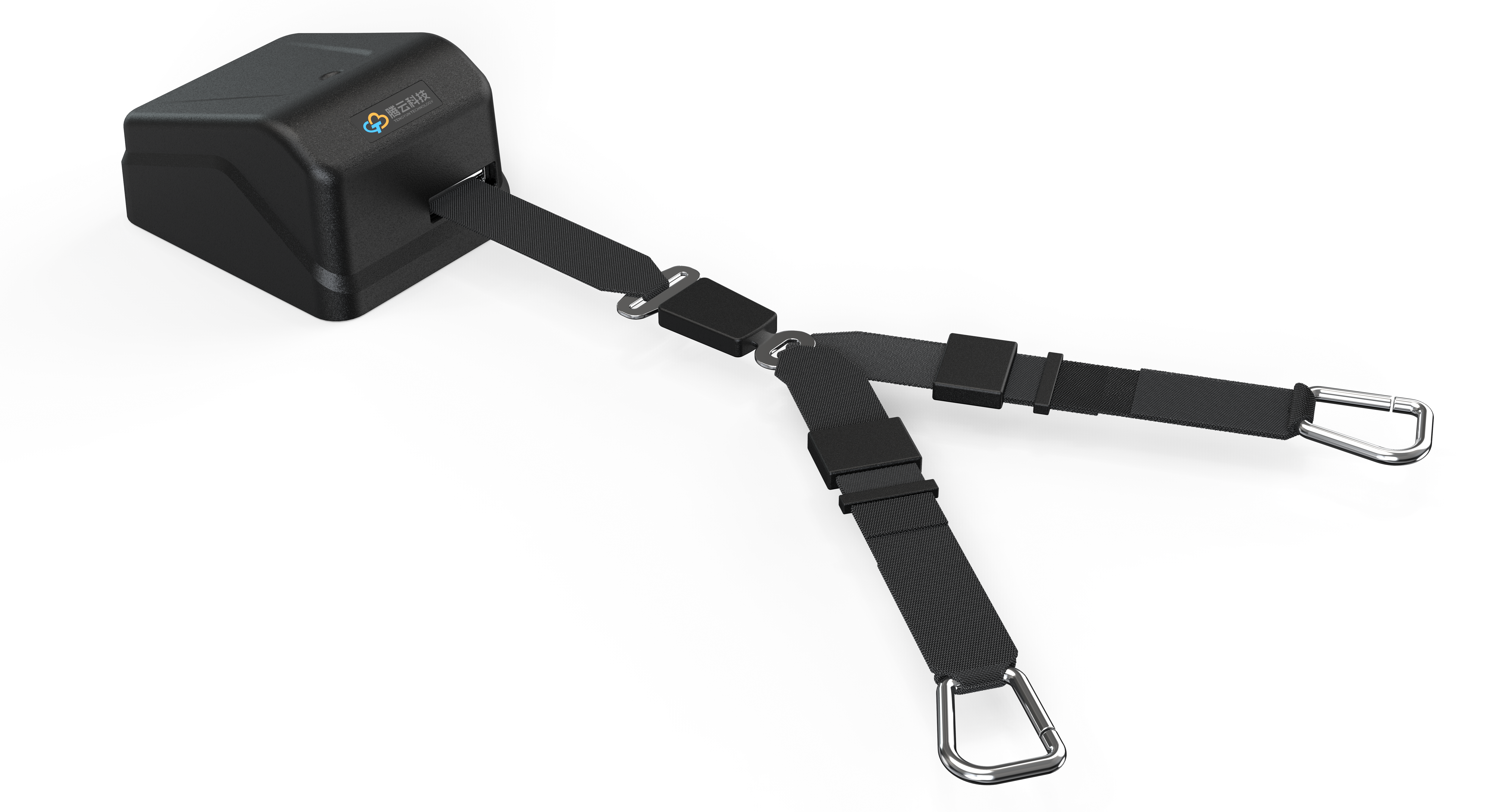

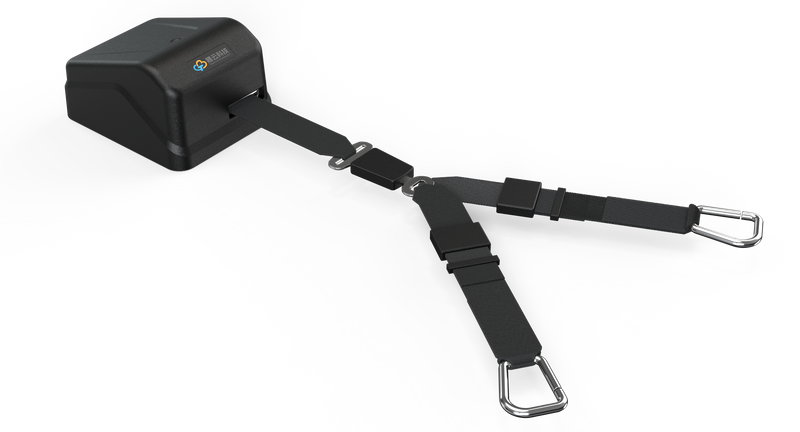

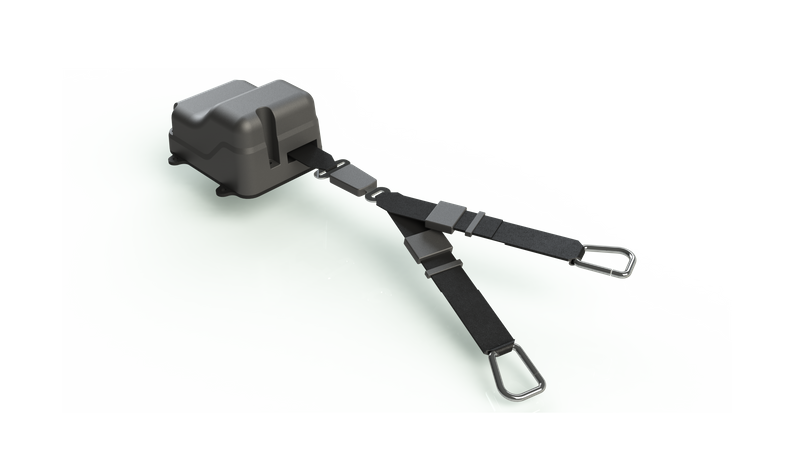

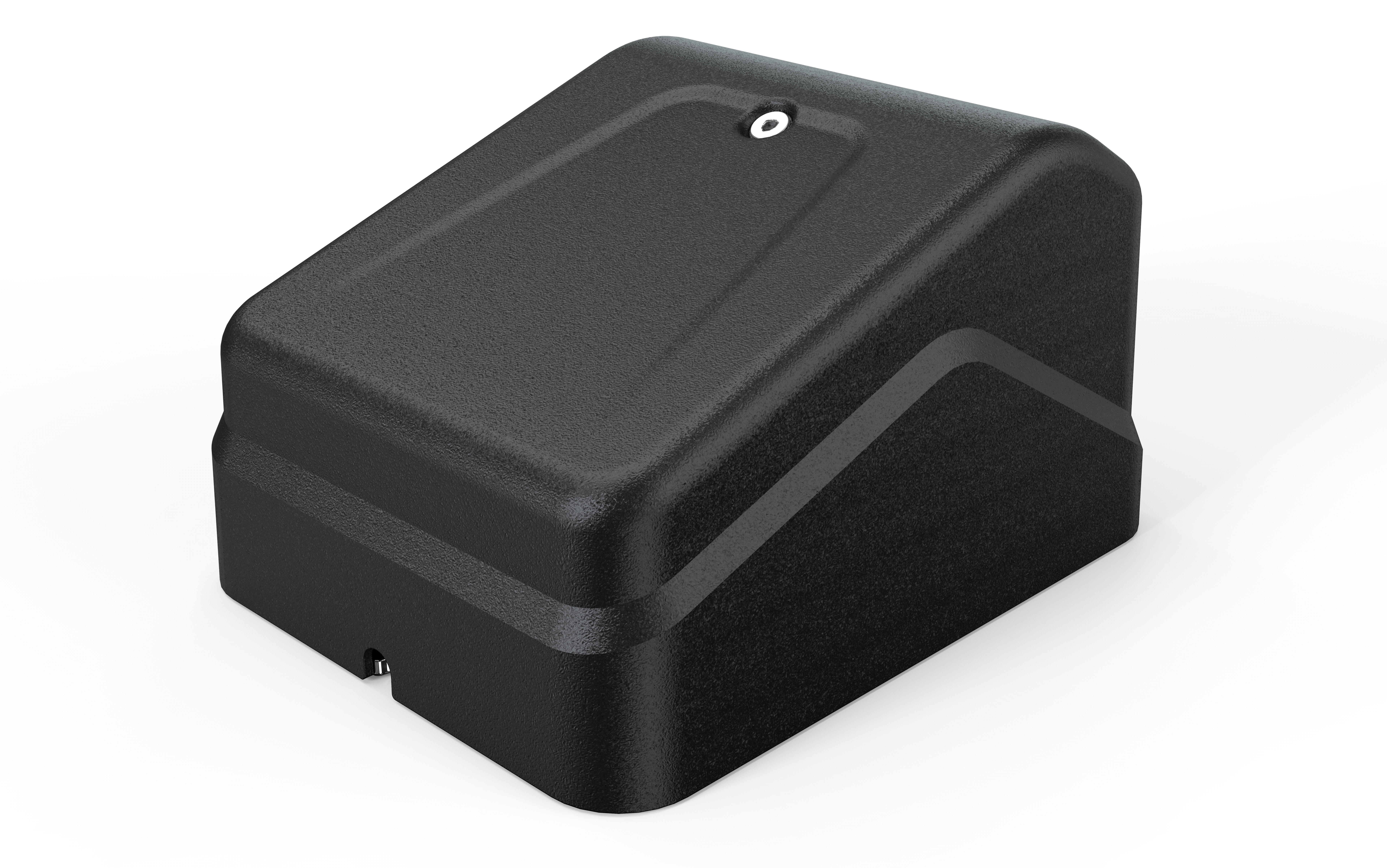

Wheelchair Winch – Assisted Traction System for Accessible Vehicles

Wheelchair Winchs Wheelchair Winch

The Wheelchair Winch is designed to help wheelchair users safely move up and down a vehicle access ramp. It provides stable pulling assistance when ascending and ensures continuous braking control when descending, effectively reducing physical strain for caregivers and improving safety for passengers.

Its compact size and flexible installation make it suitable for MPVs, vans, mobility buses, and a wide range of accessible vehicle conversions.

Key Features

Meets international safety standards: Complies with 2006/42/EC, 2014/30/EU, and ECE R10
Smooth, low-noise operation for a more comfortable user experience
Instant on/off activation, quick response, easy to operate
Equipped with a wireless remote controller for convenient handling
Compact body design, compatible with more vehicle models
High-durability components for long-term reliability

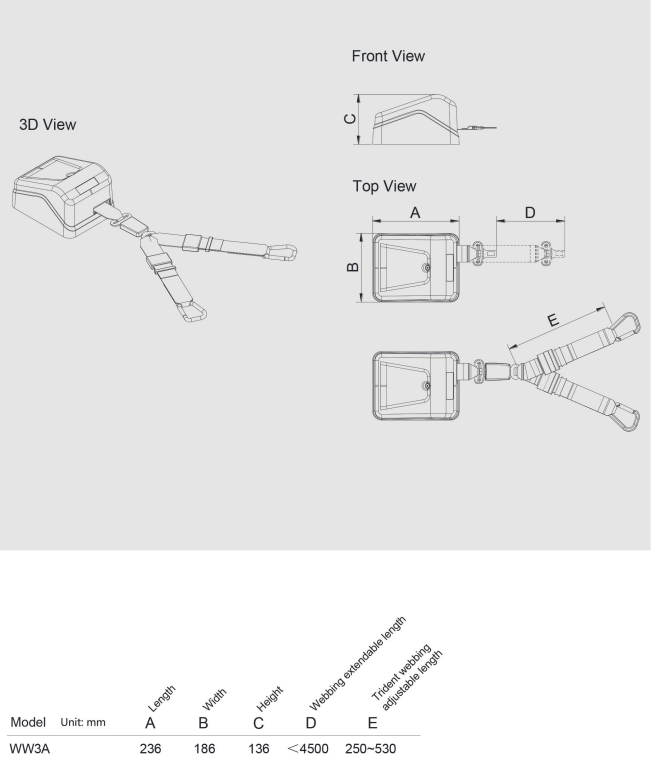

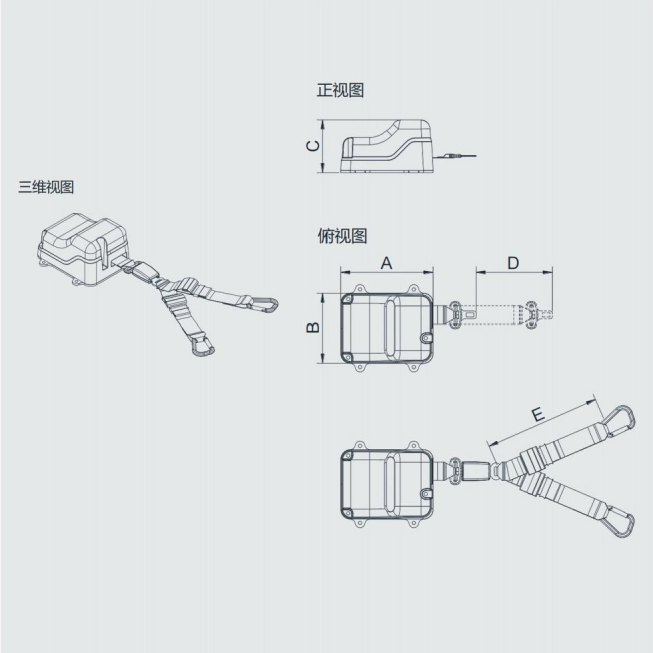

Wheelchair Winchs

Power Supply	Traction Force	Webbing Length	Operating Noise
12V DC	14:1 / 1250N	≤4500 mm	≤60 dB

Assisted Ascending

When activated, the winch provides controlled traction, pulling the wheelchair smoothly up the vehicle’s ramp with minimal effort.

Safe Descending

The system automatically provides braking resistance, preventing sudden acceleration and ensuring a safe, stable descent.

Hands-Free Remote Control

Operators can activate or stop the winch instantly through a wireless remote, improving safety and convenience.

Applications

Accessible MPVs and vans
Mobility transport vehicles
Rehabilitation institutions
Elderly care transportation
Wheelchair taxi fleets

FAQ

Q1: What is a wheelchair winch used for in accessible vehicles?

A wheelchair winch is a mobility assistance device designed to help wheelchair users move safely up and down a wheelchair ramp when boarding or exiting an accessible vehicle. It provides controlled traction during ascent and continuous braking during descent, improving safety and reducing physical strain for caregivers. It is commonly used in MPVs, vans, and wheelchair-accessible vehicles.

Q2: Is this wheelchair winch compatible with most wheelchair ramp systems?

Yes. This wheelchair winch is compatible with most vehicle-mounted wheelchair ramp systems, including manual and foldable ramps. Its compact design allows flexible installation, making it ideal for a wide range of accessible vehicle conversions in both European and North American markets.

Q3: How does the wheelchair winch improve safety when descending a ramp?

During descent, the winch automatically applies continuous braking force to prevent uncontrolled movement. This controlled lowering reduces the risk of slipping or sudden acceleration, ensuring safer wheelchair boarding and exiting for both passengers and caregivers.

Q4: Who benefits most from using a wheelchair winch?

Wheelchair winches are especially beneficial for elderly passengers, people with limited mobility, and caregivers. They are widely used in rehabilitation centers, nursing homes, hospitals, wheelchair taxis, and accessible transport fleets where safe and repeatable wheelchair boarding is essential.

Q5: Is the wheelchair winch easy to operate?

Yes. The system is designed for simple and intuitive operation and includes a wireless remote control for instant start and stop. This allows drivers and caregivers to operate the wheelchair winch easily, even without technical training, making it suitable for daily use in accessible vehicles.
