Cassette Wheelchair Lift – Mini Type
Changzhou, China (Mainland)
Support
Aluminum Alloy
Product Description

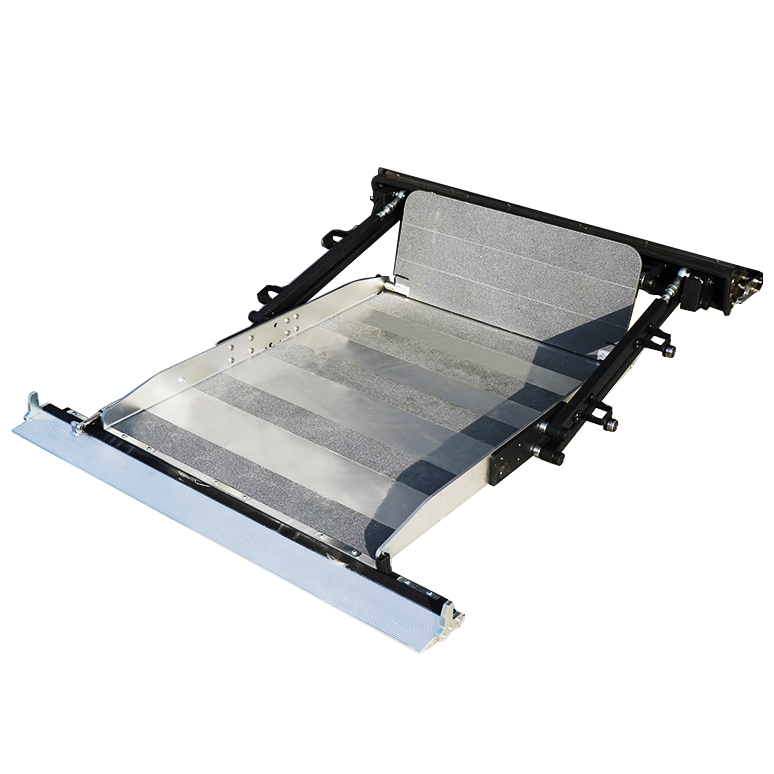

The Cassette Wheelchair Lift – Mini Type is a compact and space-saving mobility solution designed for accessible vehicles and vans. Installed under the vehicle chassis near the side door, this lift does not occupy interior space and does not affect the visibility of the driver or passengers.
With an ultra-thin cassette design, the lift maintains maximum ground clearance while remaining discreet when not in use. Powered by a fully automatic hydraulic drive system, the platform deploys smoothly and provides safe, stable lifting for wheelchair users.
The lift can be operated using a handheld switch or mobile APP, allowing caregivers or passengers to control the system conveniently. Designed with safety and durability in mind, the lift features an anti-slip platform, automatic safety barriers, and emergency manual operation for reliability in all situations.

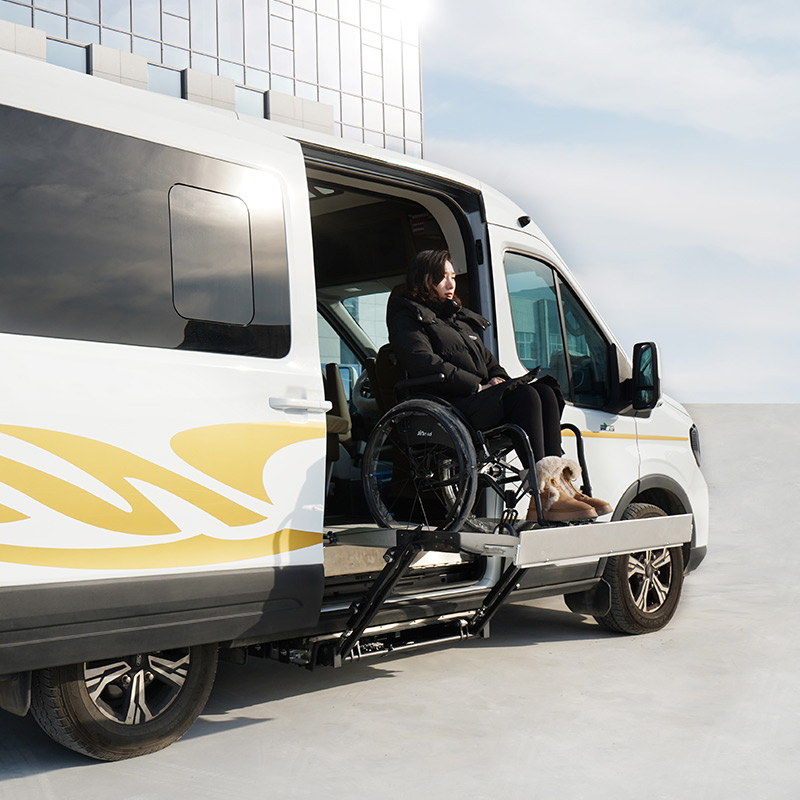

This wheelchair lift is ideal for accessible vans, mobility transport vehicles, and special purpose vehicles, helping wheelchair users enter and exit vehicles safely and independently.
The slim cassette housing is installed beneath the vehicle chassis, preserving interior space while ensuring sufficient ground clearance.

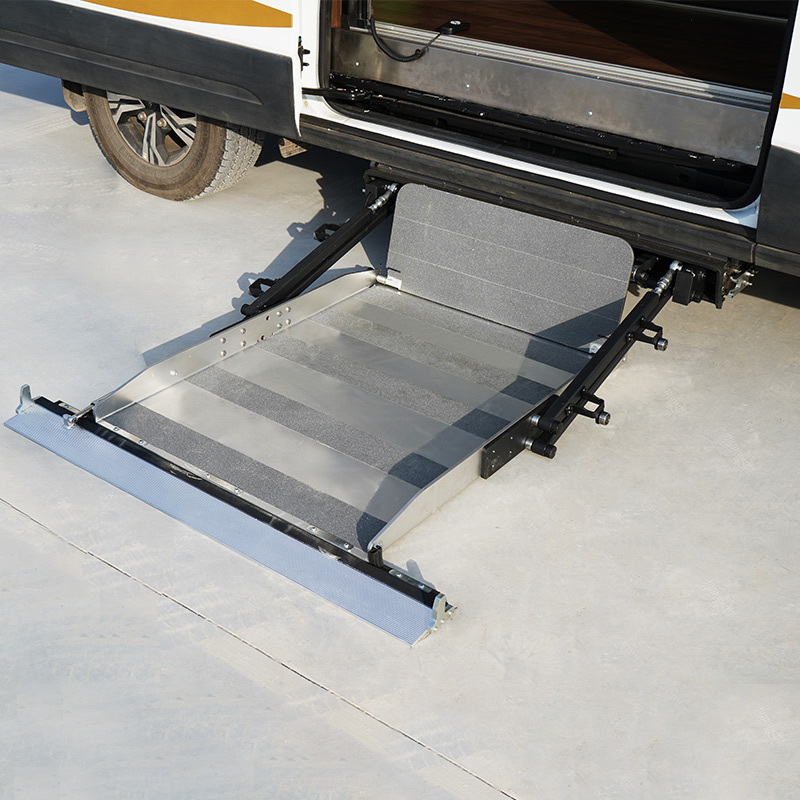

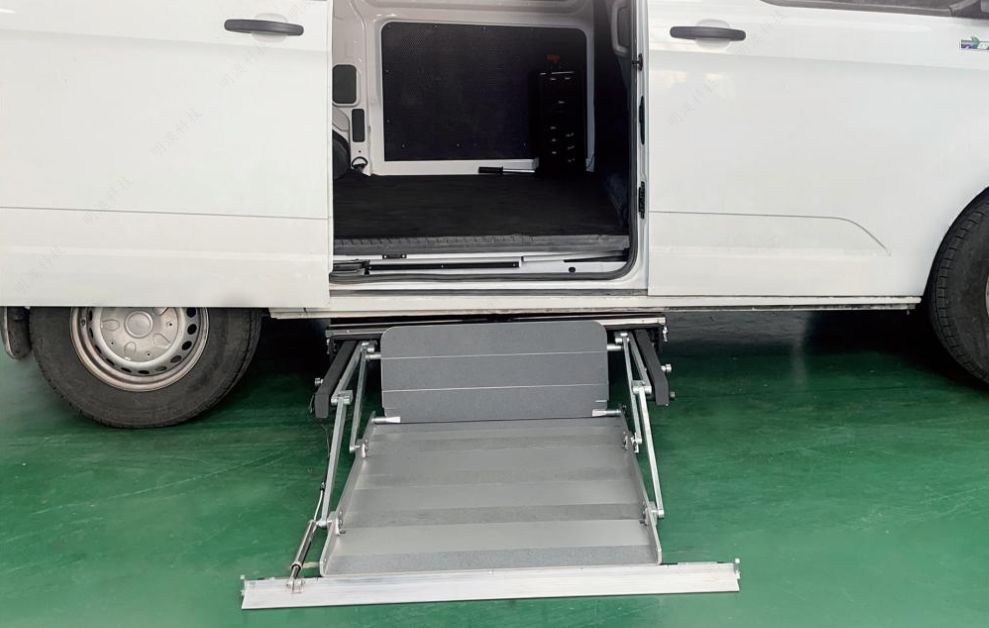

Mounted under the side door of the vehicle, the lift remains hidden when not in use and does not interfere with passenger seating or driver visibility.
The hydraulic lifting mechanism ensures smooth, stable, and reliable operation during platform deployment and lifting.
The platform surface features an anti-slip structure that improves traction and safety during boarding and exiting.
Mechanical safety barriers automatically deploy to prevent wheelchair roll-off during lifting.
The lift can be operated via:
Handheld switch control
Mobile APP control
In the event of power failure, the lift can be operated manually to ensure safe passenger exit.
A continuous buzzer alert operates while the lift is running, improving operational safety.
The lift surface is treated with plastic spraying coating, providing excellent corrosion resistance and durability.
The Cassette Wheelchair Lift is designed and manufactured to comply with international safety and quality standards:
2006/42/EC Machinery Directive
2014/30/EU Electromagnetic Compatibility Directive
ECE R10
EN 1756-2
GB13094
These standards ensure reliable performance, operational safety, and compatibility with vehicle systems.

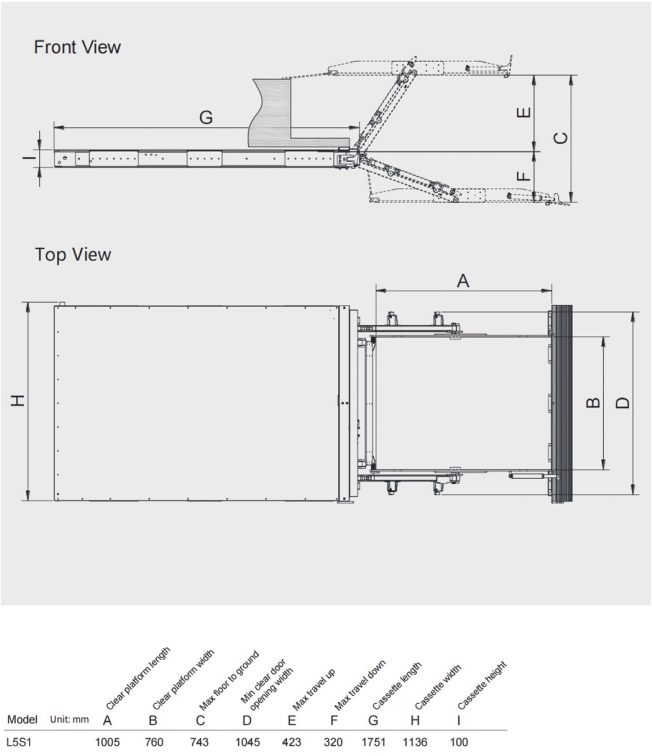

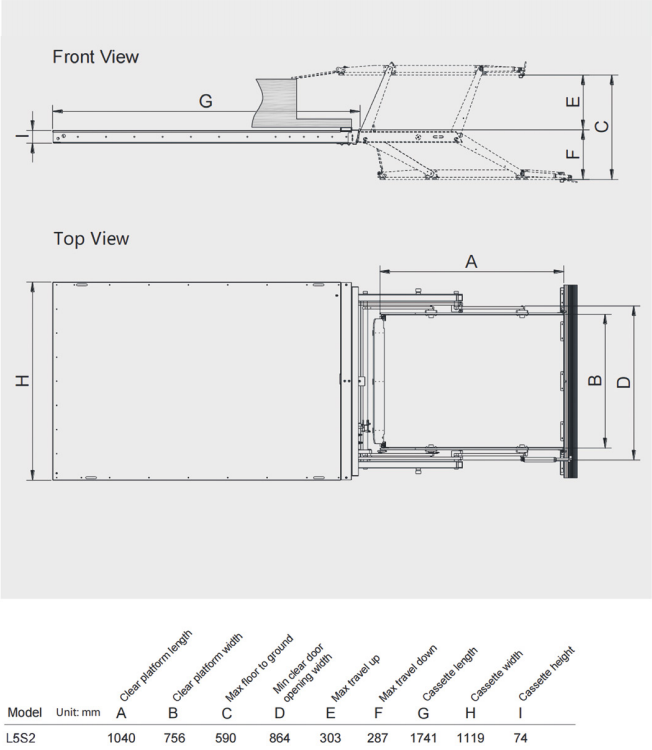

| Parameter | Specification |
|---|---|
| Power Supply | 12V / 24V DC |
| Rated Power | 500 W |
| Load Capacity | 300 kg |
| Drive System | Fully Automatic Hydraulic |
| Installation Position | Under Vehicle Chassis (Side Door) |
| Platform Surface | Anti-Slip |
1. What is a cassette wheelchair lift?
A cassette wheelchair lift is an underfloor vehicle wheelchair lift installed beneath the vehicle chassis. It slides out when needed and retracts into a compact cassette housing when not in use, saving interior space.
2. Does the lift affect the vehicle's interior space?
No. This underfloor wheelchair lift for vans is installed outside the cabin under the chassis, so it does not occupy passenger space or affect seating layout.
3. What is the maximum weight capacity of the wheelchair lift?
The lift has a load capacity of 300 kg, making it suitable for most wheelchairs and mobility devices.
4. Can the wheelchair lift be operated remotely?
Yes. The lift supports handheld switch control and APP control, allowing easy operation for both passengers and caregivers.
5. Is the wheelchair lift safe during operation?
Yes. The lift includes anti-slip platforms, automatic safety barriers, buzzer alerts, and emergency manual operation, ensuring safe boarding and exiting for wheelchair users.
