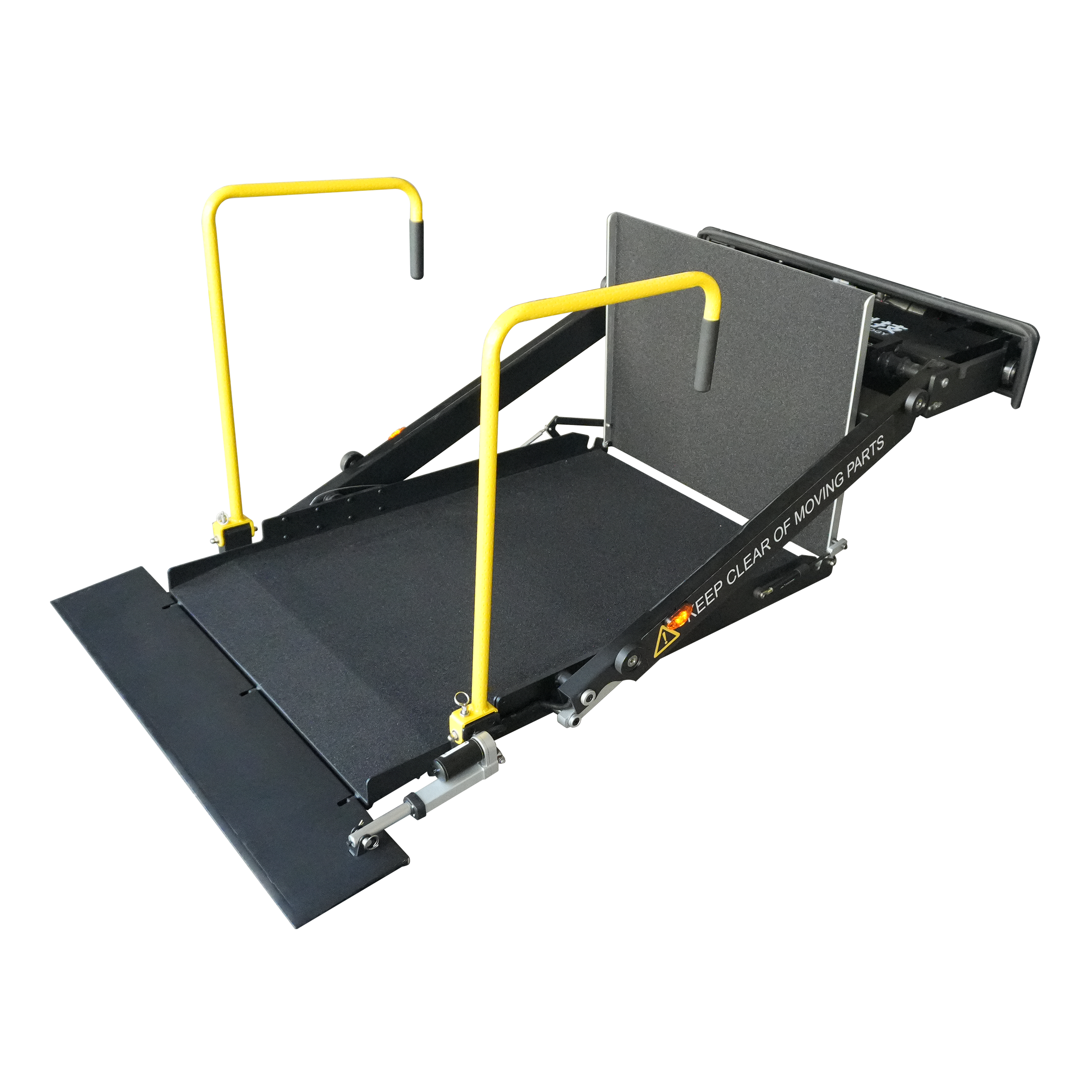

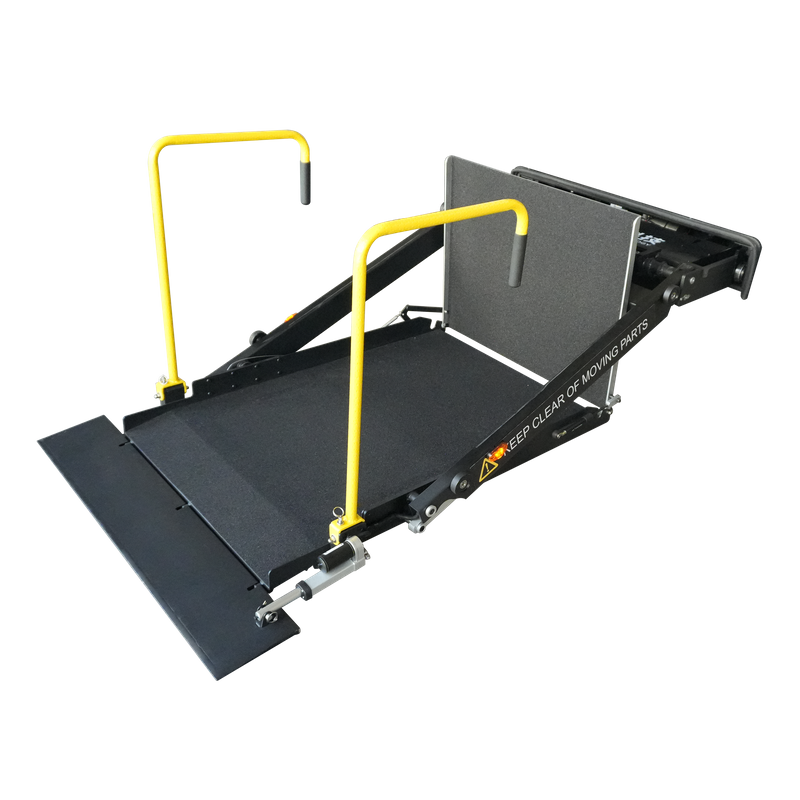

Full-Cassette Wheelchair Lift

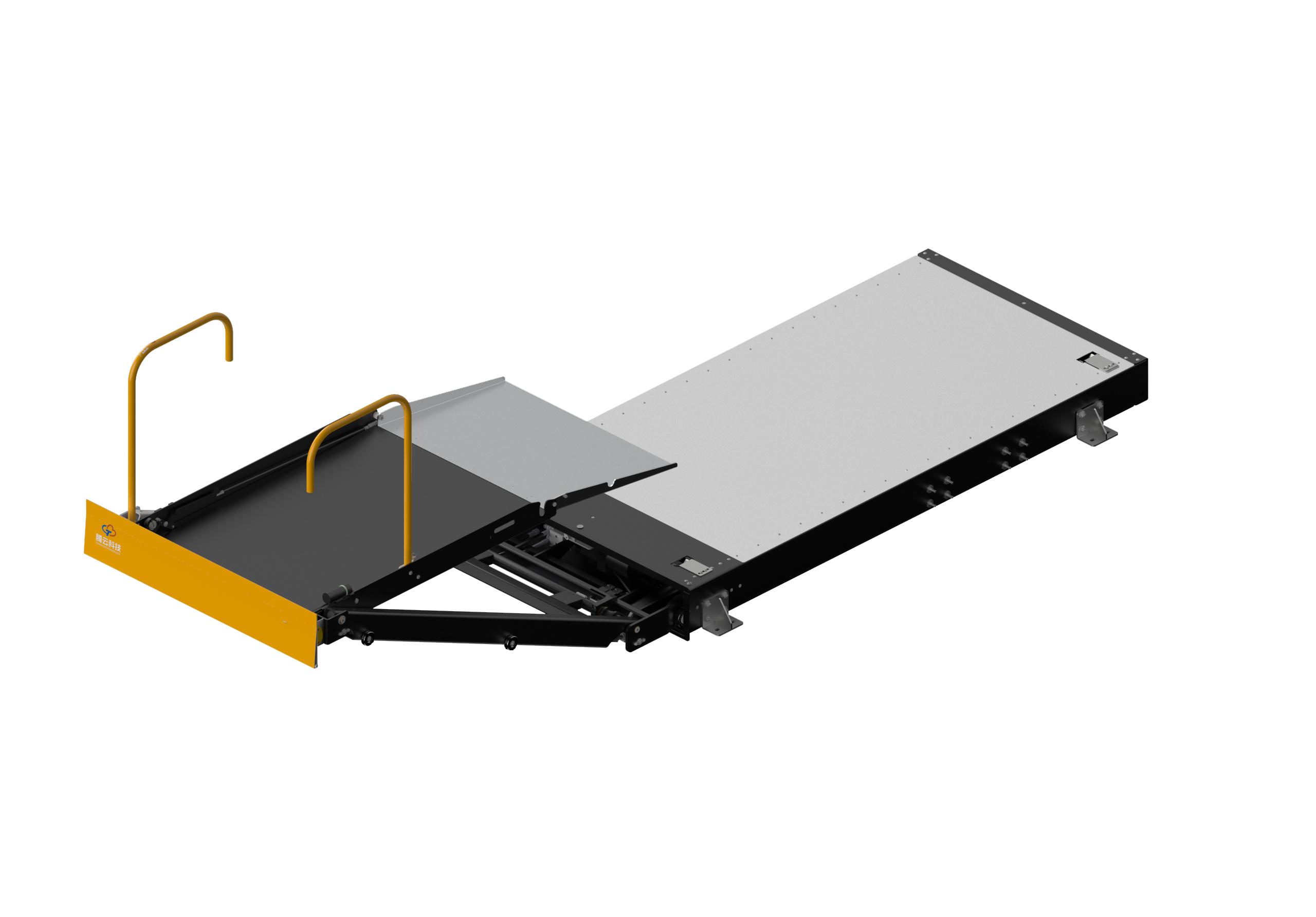

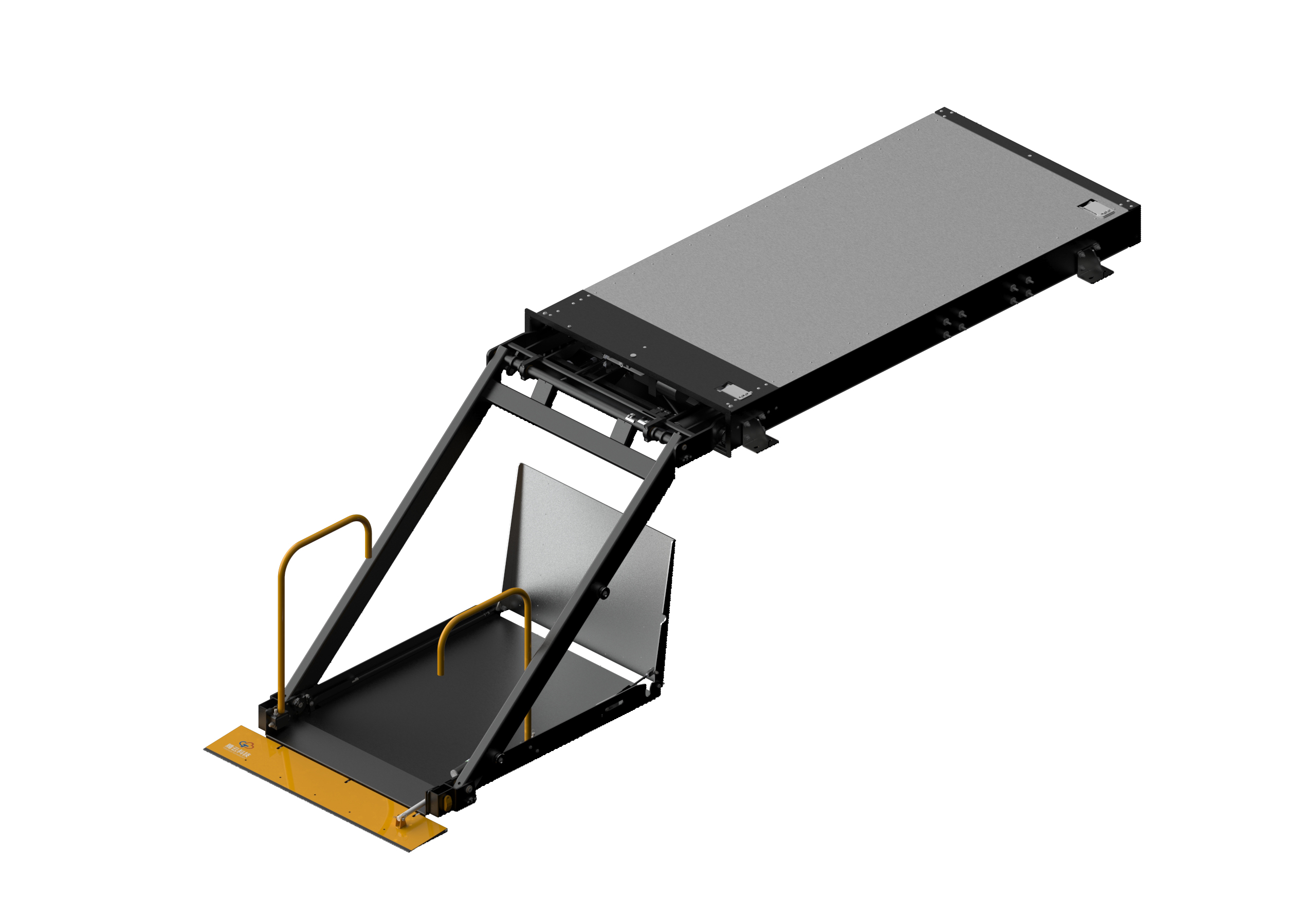

The Full-Cassette Wheelchair Lift is a professional bus wheelchair lift solution designed specifically for high-floor city buses and coaches. Installed discreetly within the vehicle step area, it enables wheelchair passengers to board and exit the vehicle safely—without occupying interior space or interfering with normal passenger flow.

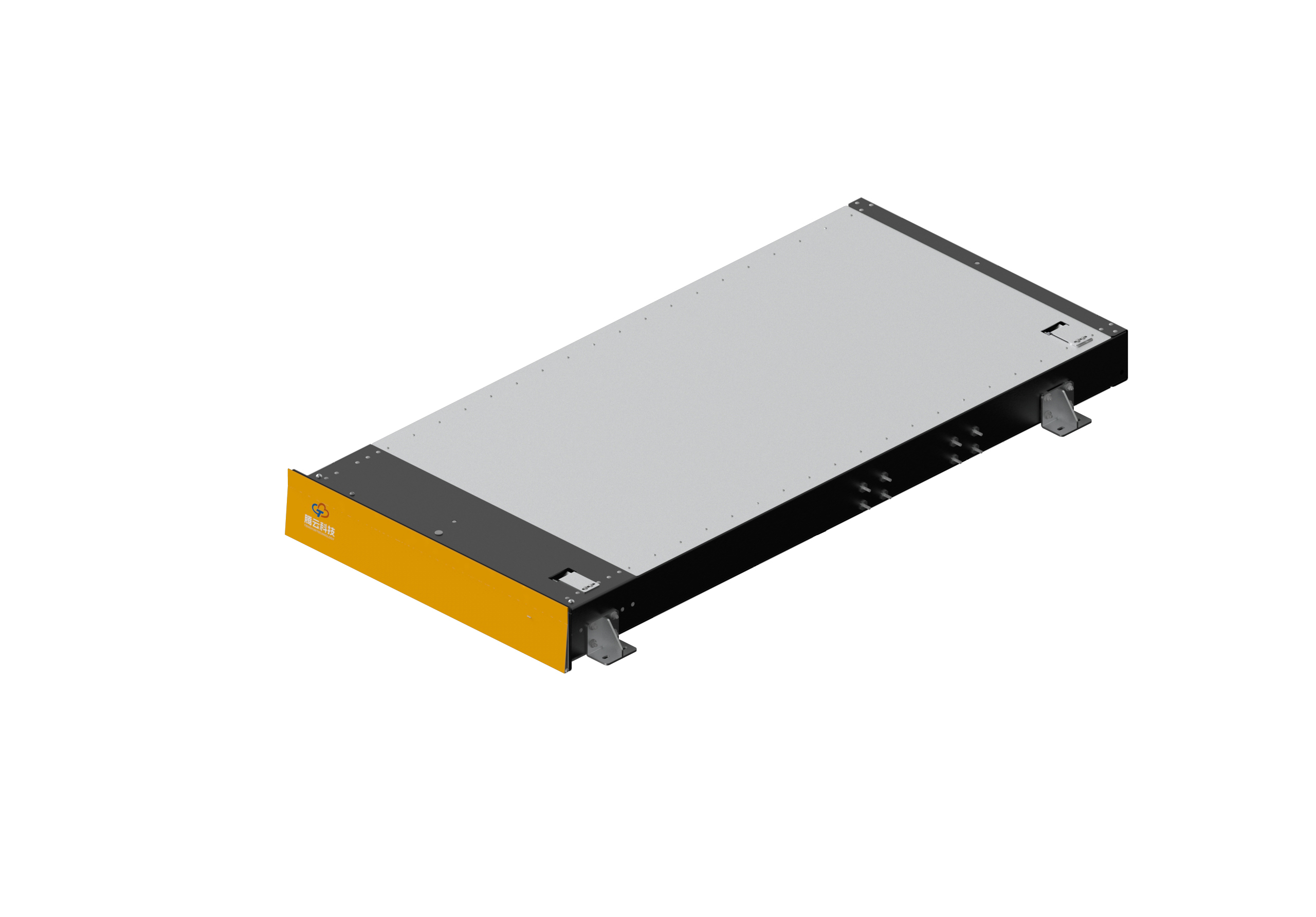

When not in use, the lift is fully stowed inside the cassette, preserving the original vehicle layout and maintaining a clean, unobstructed entrance. During operation, integrated warning lights and audible buzzer alerts ensure clear communication with passengers and operators.

In the event of insufficient vehicle power or electrical failure, the lift can be manually retracted using an emergency function, ensuring the vehicle can continue normal operation without delay.

Key Features

• Installed within vehicle step area, no interior space occupation

• Anti-slip lifting platform

• Automatic front barrier and mechanical rear barrier

• Integrated safety handrails

• Audible buzzer and warning lights during operation

• Vehicle interlock function

• Safety locking mechanism for dynamic driving conditions

• Fully automatic hydraulic drive

• Emergency manual retraction function

• Powder-coated surface with excellent corrosion resistance

The cassette wheelchair lift is engineered to meet key international and regional standards for public transport accessibility:

• ECE R10 – EU E-Mark Certification

• EN 1756-2 – European Wheelchair Lift Standard

• GB 13094 – Mandatory National Regulation

These certifications confirm electromagnetic compatibility, structural safety, and suitability for use in buses and coaches across multiple markets.

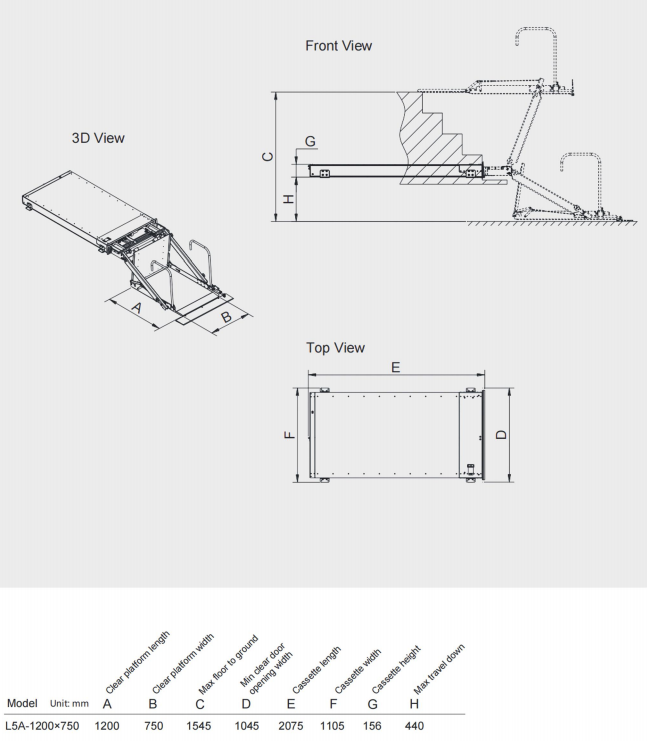

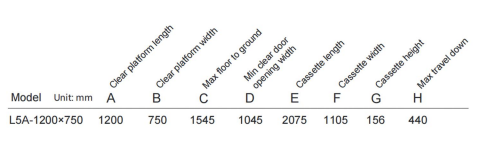

Operating Voltage: 12 / 24 V DC
Rated Power: 800 W
Maximum Load Capacity: 350 kg

FAQ

What is a full-cassette wheelchair lift for high-floor buses?

A full-cassette wheelchair lift is a space-saving wheelchair accessibility solution designed for high-floor buses and coaches. The platform is fully stored inside the vehicle step area, allowing safe wheelchair boarding without reducing interior passenger space.

Where is this wheelchair lift installed?

This cassette wheelchair lift is installed within the vehicle stepwell of high-floor public transport vehicles. When not in use, it remains completely hidden, ensuring normal passenger boarding and unobstructed aisles.

Is this wheelchair lift compliant with European standards?

Yes. The lift complies with EN 1756-2, ECE R10 (EU E-Mark), and GB 13094, making it suitable for European and international public transport accessibility requirements.

What safety features does the bus wheelchair lift include?

The lift includes a non-slip platform, safety handrails, an automatic front barrier, a mechanical rear barrier, audible buzzer alerts, warning lights, and a vehicle interlock system to ensure safe operation in public transport service.

What happens if the bus loses power during operation?

If the vehicle experiences power loss or electrical failure, the wheelchair lift can be manually retracted using the emergency function, allowing the bus or coach to continue normal operation without disruption.
