Wheelchair Restraint System

Product Overview

The RS5A Wheelchair Restraint System is designed for professional accessible vehicle converters, fleet operators, ambulances, MPVs, vans, and shuttle buses that require safe, reliable, and easy-to-operate wheelchair securement.
This system meets ISO10542-1:2012 dynamic crash test requirements, ensuring maximum passenger protection during sudden stops or collisions.

Wheelchair Securement

The RS5A system is fully tested under international wheelchair securement standards, guaranteeing professional-grade safety for commercial and public transport vehicles.

When fully retracted, the wheelchair tie-down belts can be easily pulled out using just one hand, making it ideal for fast, efficient daily operation.

Each retractor features dual rotary knobs on both sides, enabling operators to quickly tighten or adjust belt tension with precision.

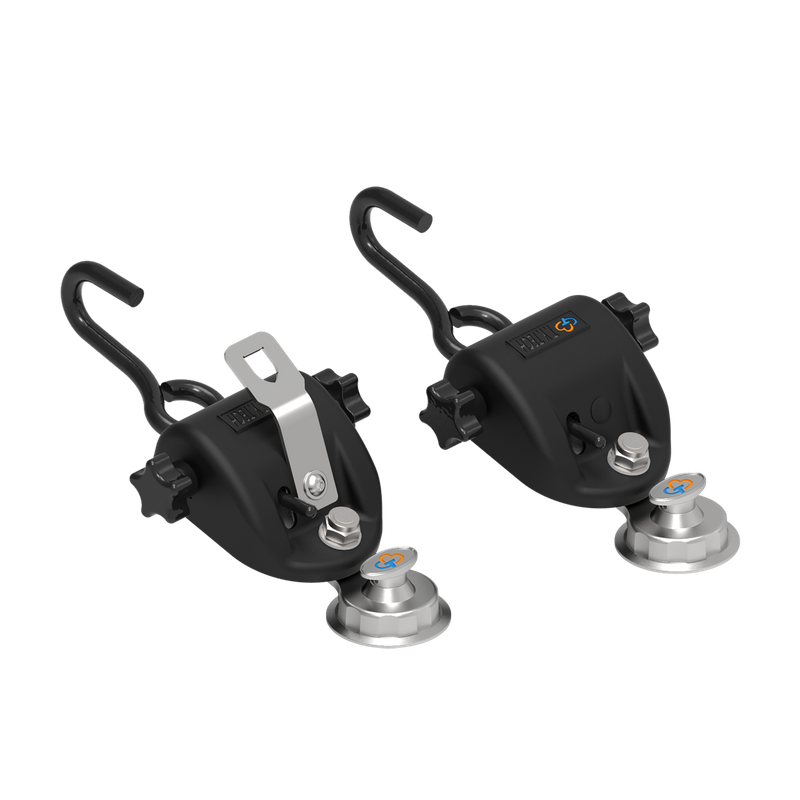

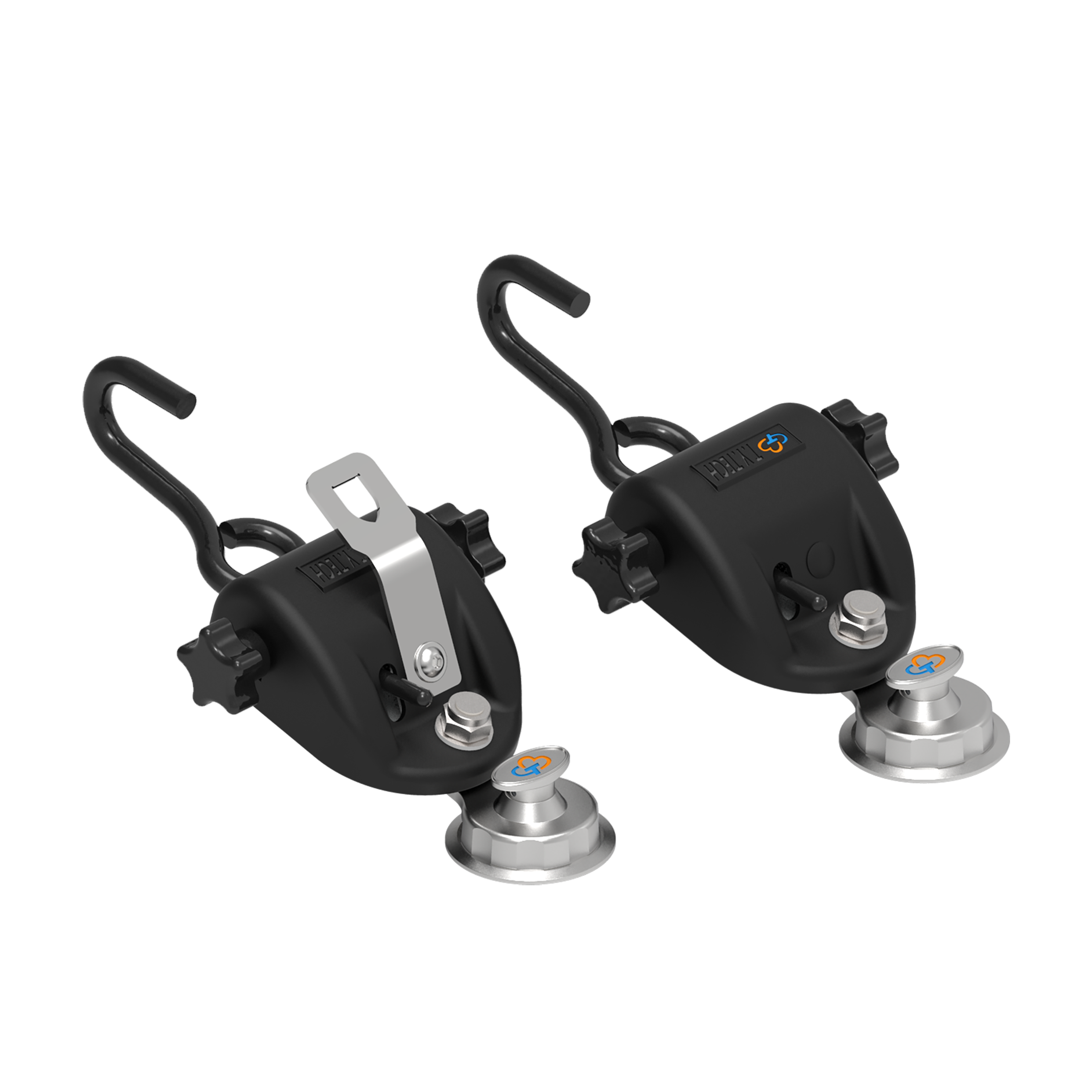

RS5A Wheelchair Restraint System

The system includes a standard two-point occupant safety belt.
For higher safety requirements, a three-point belt is available as an upgrade.

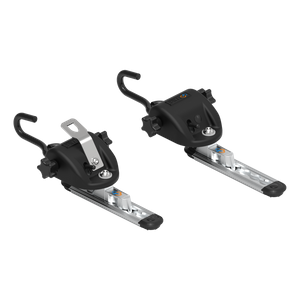

The flush-mounted track integrates seamlessly into the vehicle floor.
The included rubber sealing strip prevents dust accumulation and avoids tripping hazards when the system is not in use.

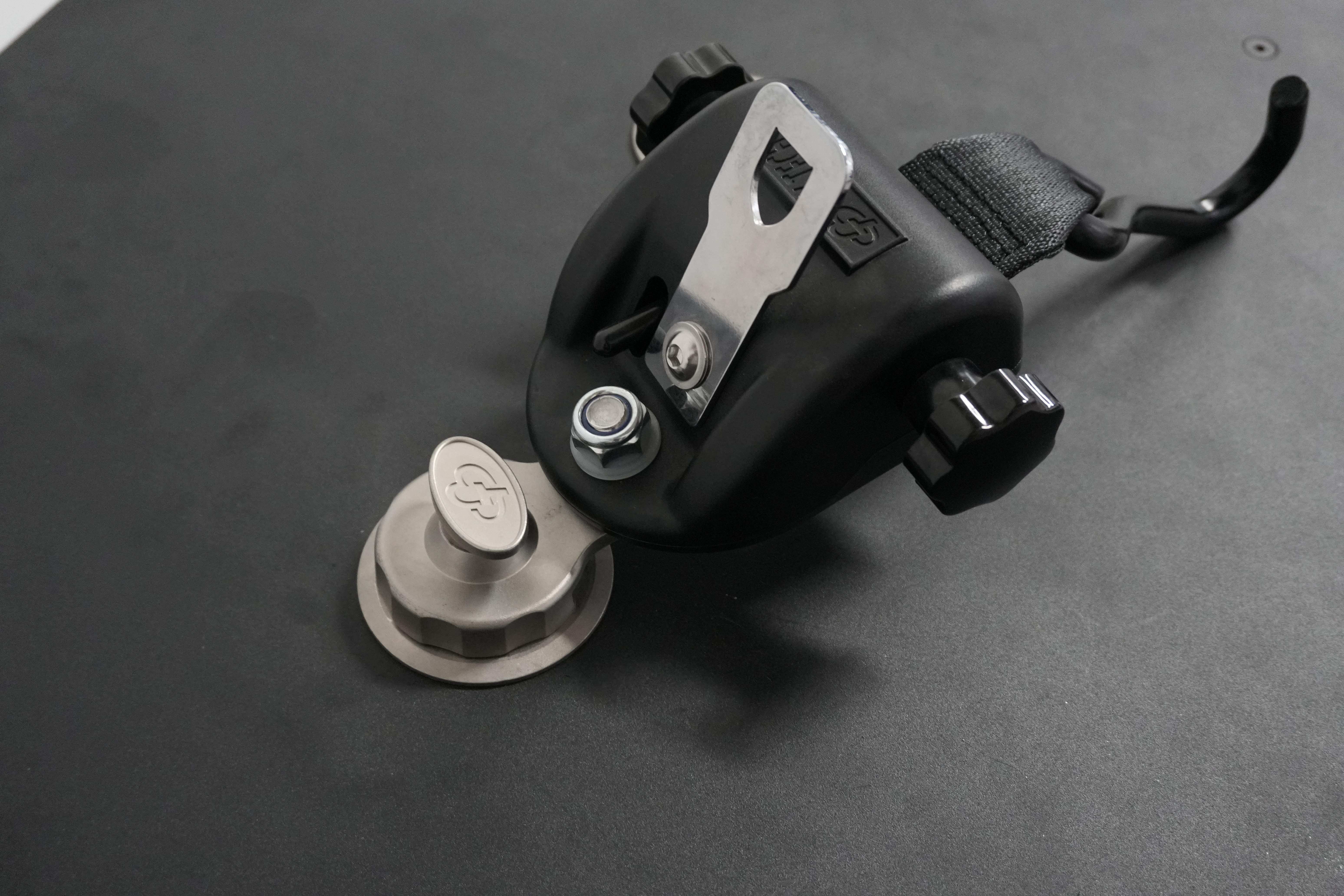

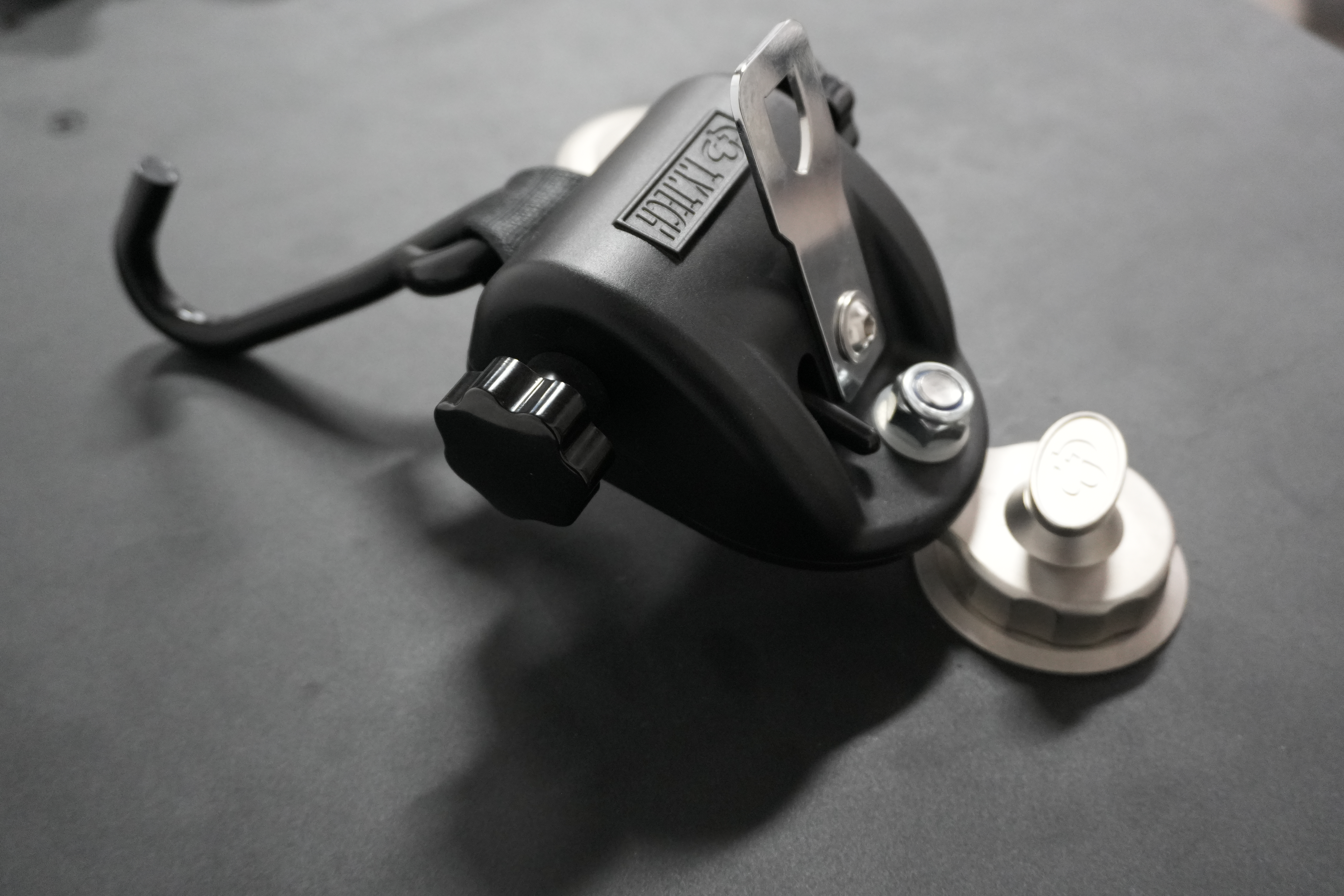

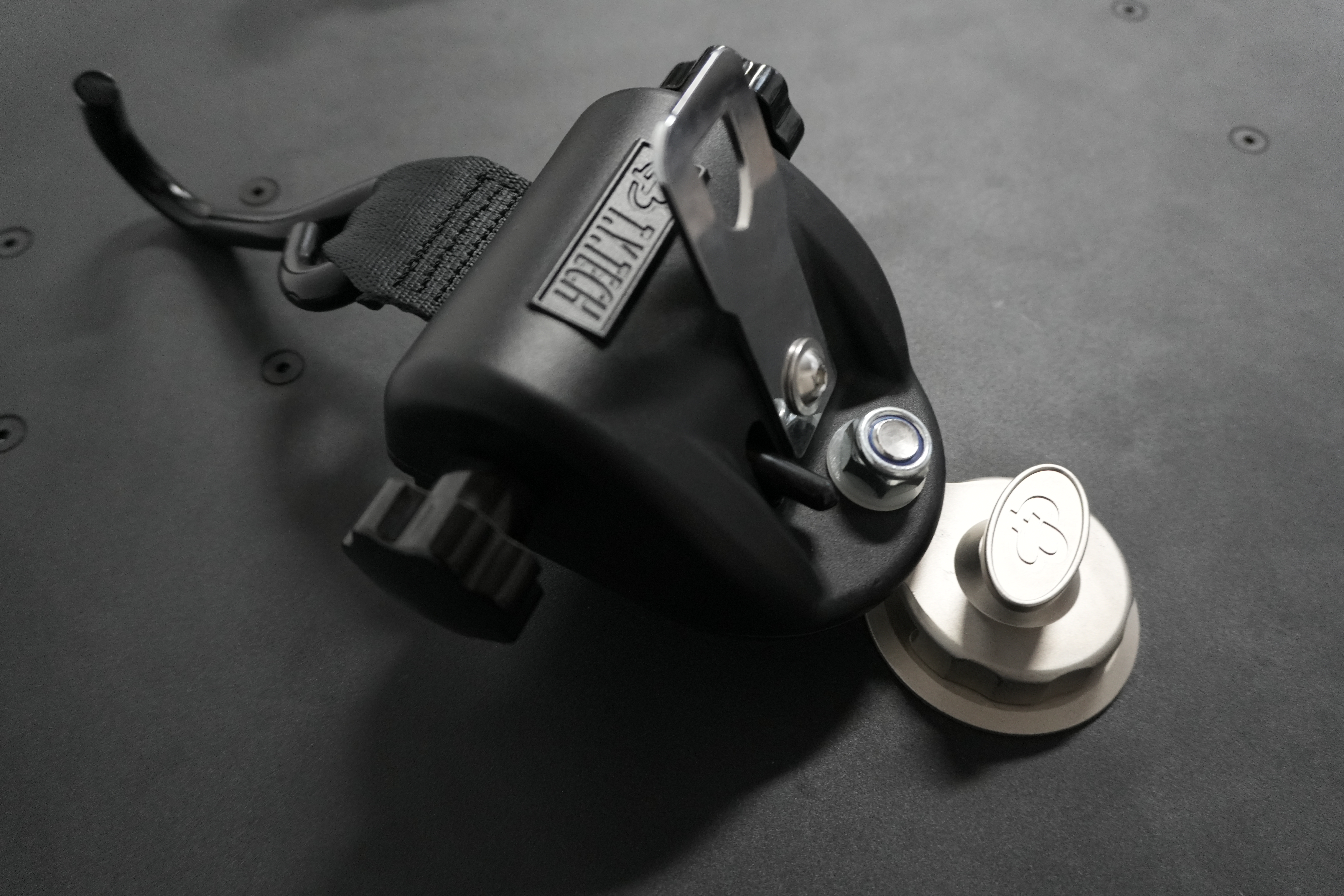

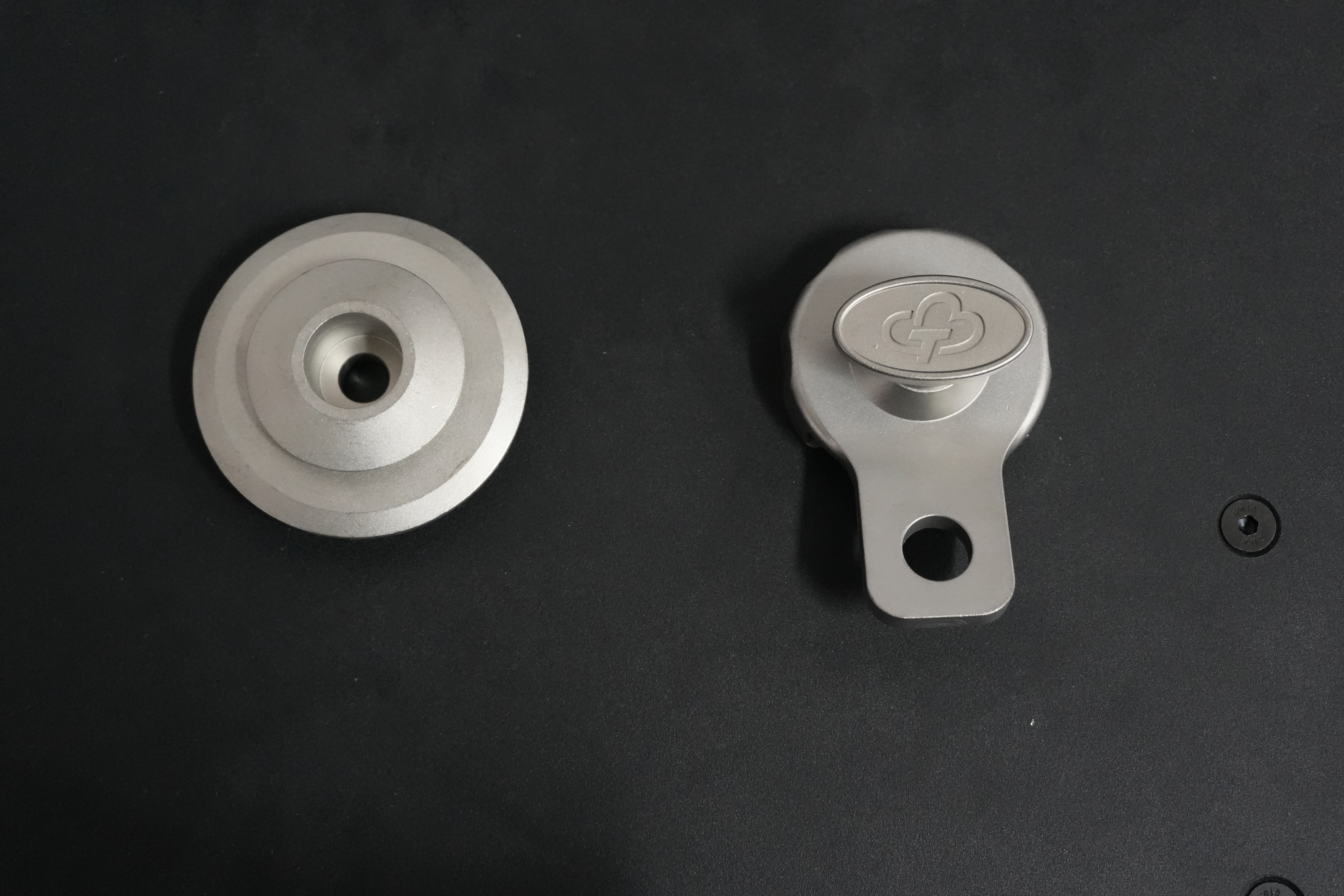

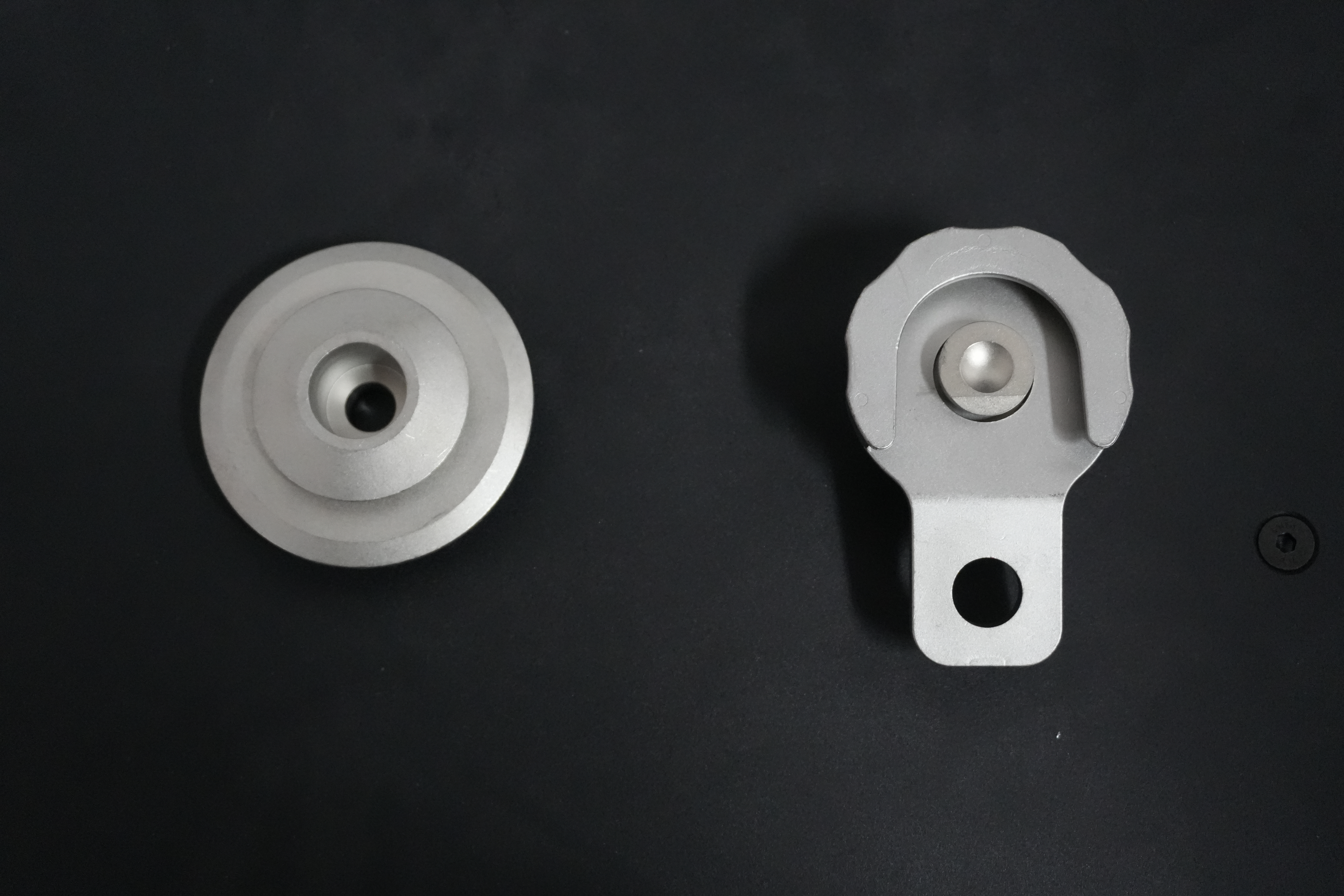

The RS5A disc mounting base occupies minimal floor space and supports 360-degree rotation, making it easy to align retractors with different wheelchair positions.

Product Specifications

Technical Specifications

• Standard compliant: ISO10542-1:2012

• Operation type: Single-hand belt extraction

• Rotation angle: 360° (disc base)

• Retractor type: Automatic self-locking

• Track type: Embedded floor track with sealing strip

• Belt type: 2-point (standard), 3-point optional

• Materials: High-strength steel + wear-resistant nylon

• Application vehicles: MPV, van, minibus, ambulance, shuttle bus

Application Scenarios

The RS5A system is widely used in:

• Accessible MPV conversions

• Wheelchair taxi fleets

• Shuttle buses & hotel transport

• Community mobility services

• Ambulances

• School buses for special education

• Government/public transportation projects

Installation Method

The system supports quick installation with standard automotive tools.Discanchors and embedded tracks require only minimal floor modification, making it suitable for professional conversion shops and fleet workshops.

Call to Action

For OEM projects, distributors, or fleet procurement, contact us to get full technical documents, installation drawings, and pricing.

Packing&Delivery

1.Standard Packing Terms

• Standard Export Packing

• Carton + Wooden Case

• Custom Packaging Available

• Each unit packed securely to prevent damage during transport




 2.Delivery Terms

• Delivery Time: within 15-25 days after payment

• Shipping Port: Shanghai / Ningbo / Shenzhen as requested

• Transport Mode: by Sea / Air / Express / Rail

• Lead Time depends on order quantity

• Tracking number will be provided after shipment

 3.Trade Terms

• FOB / CIF / EXW / DDP / DDU available

• OEM / ODM orders welcome

• Sample available before mass production
